Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 90 |
| Terminal Shape | Tab terminal # 250 |
| Operating Temperature Range | -25 to 60℃ |
| Contact Configuration | A Contact Point |
Mass (g) |
About 90 |
Terminal Shape |
Tab terminal # 250 |
Operating Temperature Range |
-25 to 60℃ |
Contact Configuration |
A Contact Point |
Function |
With Operation Confirmation Button |
Rated Voltage (V) |
DC 24 |
No. of Pole |
2 Pole |
Power Consumption |
About 1.9 |
Insulation Resistance |
100 or more (measured with the DC500V insulation resistance meter at the same location as the withstand voltage) |
Withstand Voltage |
Between coil and contacts: AC4000 50/60Hz, Between same pole contacts: AC2000 50/60Hz |
Monotaro ID |
39070613 |
Type of Product |
Power Relay |
Model No |

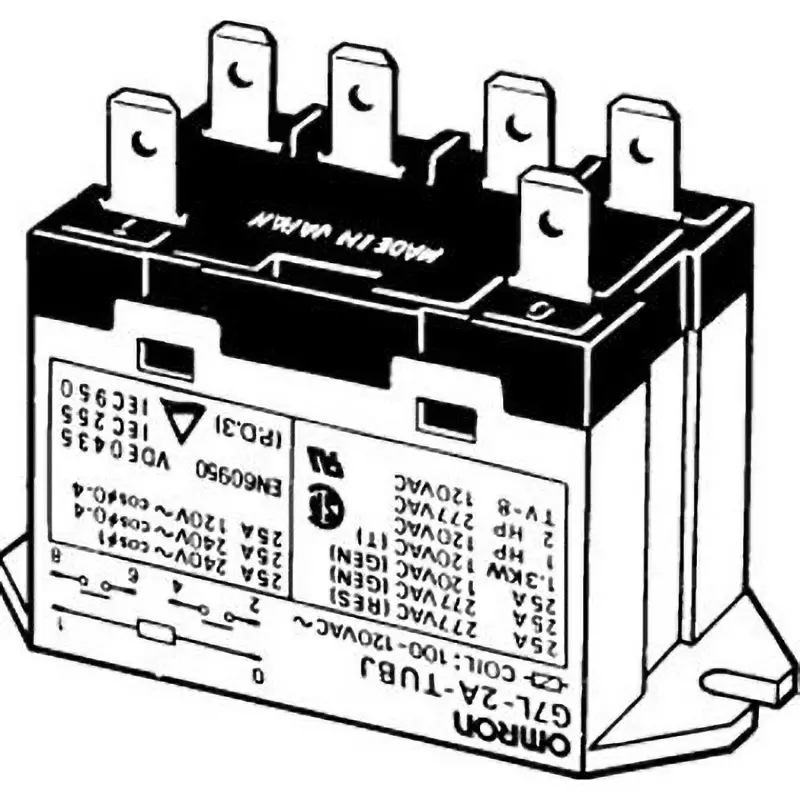

G7L-2A-TUBJ DC24 |
Series |
G7L |
Protection Class |
In a case |
Coil Voltage |
DC24 V |
Type of Sign |
Upper bracket installation |
Country of Origin |
Indonesia |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25 to +60 (with no icing or condensation) |
Category |
Power Relay |
Installation Method |
Upper Bracket Mounting |
