| Mass (g) | About 20 |
| Terminal Shape | Plug-in terminal |
| Operating Temperature Range | -40 to 70℃ |
| Contact Configuration | 1C Contact |
Mass (g) |
About 20 |
Terminal Shape |
Plug-in terminal |
Operating Temperature Range |
-40 to 70℃ |
Contact Configuration |
1C Contact |
Type |
Built-in operation indicator (DC coil: green) |
No. of Pole |
1-Pole |
Power Consumption |
About 0.53 |
Monotaro ID |
37613405 |
Type of Product |

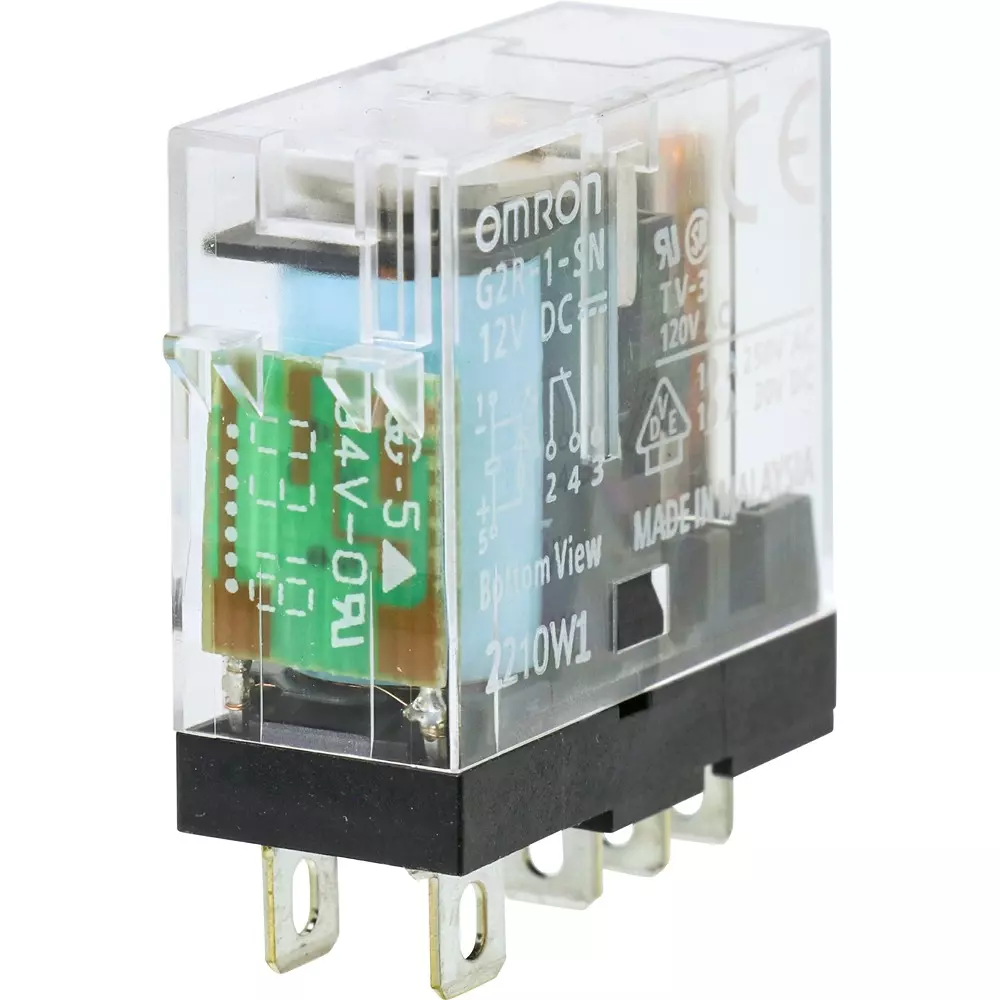

Mini Power Relay |
Series |
G2R |
Protection Class |
In a case |
Coil Voltage |
DC12 V |
Height (mm) |
34 |
Length (mm) |
31.5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
With or Without Diode |
None |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Lever Type |
Standard type (latching lever) |
Operation Ambient Temperature (°C) |
-40~+70 (no freezing or condensation) |
Manufacturer Part Number |
G2R-1-SN DC12 |
Contact Resistance (ohm) |
30 or less (by voltage drop method with 5V DC 1A energization) |
Insulation Resistance (MOhm) |
1000 or more |
Specifications |
Mechanical indicator: Standard type |
