| Mass (g) | About 20 |
| Terminal Shape | Tab terminal |
| Return Voltage | 30% or more of the rated voltage |
| Contact Configuration | 1c |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mass (g) |
About 20 |
Terminal Shape |
Tab terminal |
Return Voltage |
30% or more of the rated voltage |
Contact Configuration |
1c |
Type |
Power relay |
Rated Voltage (V) |
AC200/220 |
No. of Pole |
1 pole |
Monotaro ID |
39065013 |
Operating Voltage |
80% or less of rated voltage |
Type of Product |
Power Relay |
Model No |

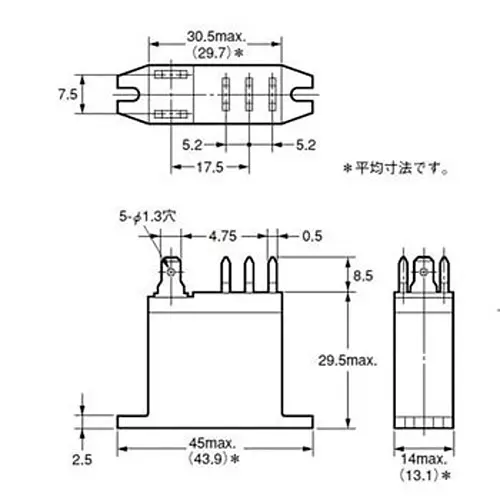

G2R-1-T AC200/(220) |
Shock Resistance |
1000m/s² |
Ambient Humidity to Use |
5 to 85%RH |
Classification |
Standard type |
Protection Class |
Closed end type |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
Shock Resistance (Malfunction) |
Excitation: 200m/s² a non-excitation: 100m/s² |
Vibration Resistance (Destruction) |
10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
Terminal Structure |
Tab terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
-40~+70 (no freezing or condensation) |
Contact Resistance (ohm) |
30 or less (DC5V 1A voltage drop method) |
Insulation Resistance (MOhm) |
1000 mohm or more (Measure the same part as the withstand Voltage with a DC500 V insulation resistance meter) |
Rated Coil Voltage |
AC200/220 |
