Ships within 19 days
Model No
View
View
View
View
| Terminal Shape | Printed circuit board terminal |
| Return Voltage | More than 10 |
| Contact Configuration | 1c |
| Rated Voltage (V) | DC12 |
Terminal Shape |
Printed circuit board terminal |
Return Voltage |
More than 10 |
Contact Configuration |
1c |
Rated Voltage (V) |
DC12 |
No. of Pole |
1 pole |
Monotaro ID |
39068005 |
Operating Voltage |
70% or less |
Type of Product |

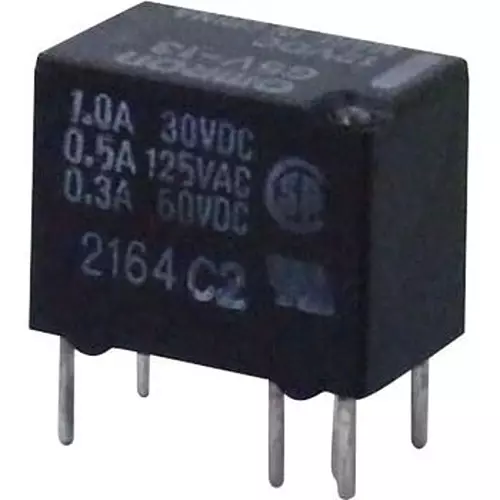

Micro Relay (Small, High-Sensitivity Single-Pole Signal Relay) |
Standard |
UL, CSA |
Model No |
G5V-13 DC12 |
Shock Resistance |
1000m/s² |
Series |
G5V-1 Series |
Power Consumption (mW) |
About 150 |
Protection Class |
Plastic seal type |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55 to 10 Hz, single amplitude 1.65 mm |
Vibration Resistance (Destruction) |
10 to 55 to 10Hz, single amplitude 1.66 mm |
Outer Dimensions |
7.5x12.5x10 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
-40~+70 (no freezing or condensation) |
Contact Resistance (ohm) |
under 100 |
Insulation Resistance (MOhm) |
1000 or more |
Rated Coil Voltage |
DC12 |
