| Terminal Shape | Screw terminal |
| Return Voltage | 36 V |
| Contact Configuration | A Contact Point |
| Mechanical Durability | 1,000,000 times or more (opening / closing frequency 1800 times / h) |
Terminal Shape |
Screw terminal |
Return Voltage |
36 V |
Contact Configuration |
A Contact Point |
Mechanical Durability |
1,000,000 times or more (opening / closing frequency 1800 times / h) |
Type |
Power relay |
Rated Voltage (V) |
AC 200/240 V |
Contact Resistance |
50 or less (DC5V 1A voltage drop method) |
No. of Pole |
2 Pole |
Insulation Resistance |
100 or more (measured with the DC500V insulation resistance meter at the same location as the withstand voltage) |
Monotaro ID |
39070421 |
Operating Voltage |
100 V |
Type of Product |
Power Relay |
Rated Voltage |
AC 200/240 V |
Model No |

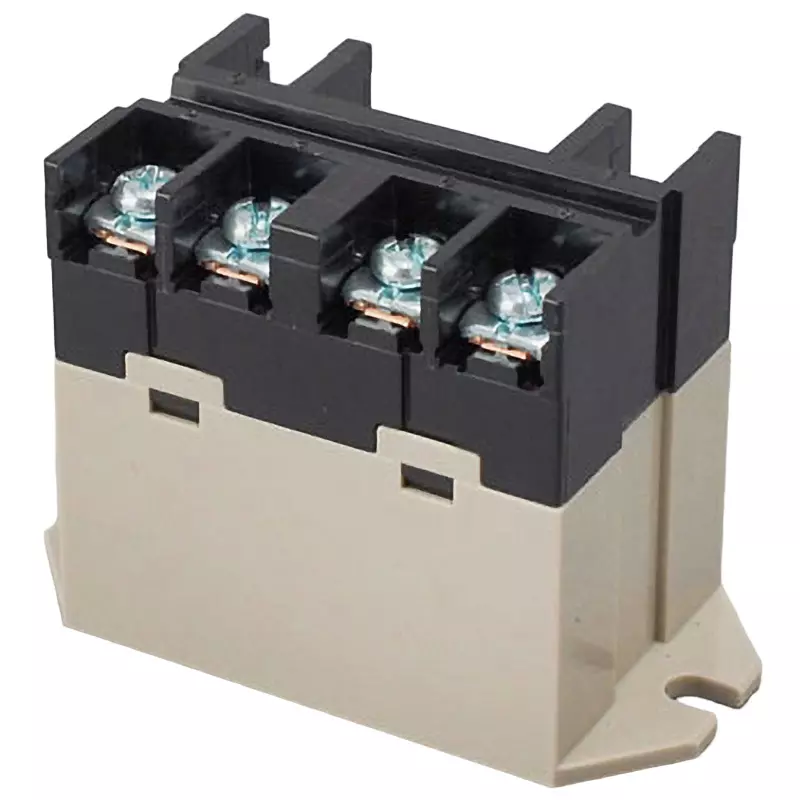

G7L-2A-BUB AC200/240 |
Weight |
About 120 g |
Shock Resistance |
1000 m/s |
Ambient Humidity to Use |
35-85%RH |
Series |
G7L |
Electrical Durability |
100,000 operations or more (Rated load switching frequency 1800 times/h) |
Operation Ambient Temperature |
-25 to +60 (with no icing or condensation) |
Terminal Fitting Type |
Upper bracket mounting type |
Country of Origin |
Japan |
Vibration Resistance (Malfunction) |
10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
Shock Resistance (Malfunction) |
100 m/s |
Vibration Resistance (Destruction) |
10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Installation Method |
Upper Bracket Mounting |
