| Mass (g) | About 100 |
| Power Consumption | 3.1 VA or less |
| Withstand Voltage | 3000VAC for 1 minute Between external terminals and case Between power supply terminals and input terminals Between power supply terminals and output terminals Between input terminals and output terminals |
| Monotaro ID | 24414486 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mass (g) |
About 100 |
Power Consumption |
3.1 VA or less |
Withstand Voltage |
3000VAC for 1 minute Between external terminals and case Between power supply terminals and input terminals Between power supply terminals and output terminals Between input terminals and output terminals |
Monotaro ID |
24414486 |
Rated Insulation Voltage (V) |
AC253 |

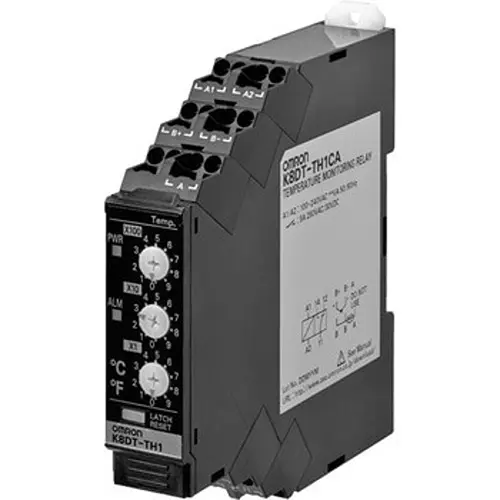

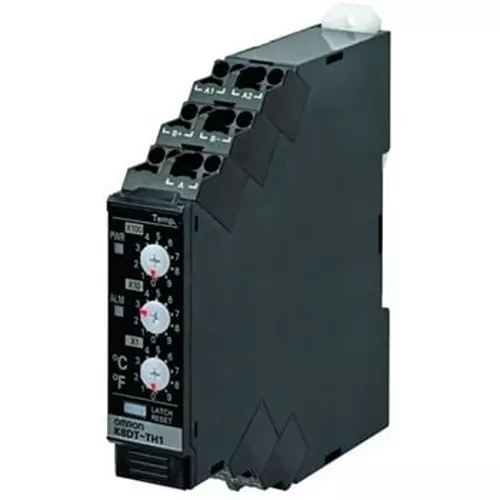

Type of Product |
Temperature Alarm Relay |
Applicable Standard |
EN 61010-1 Installation environment: pollution degree 2, overvoltage category II |
Protection Class |
Terminal: IP20 |
Type of Sign |
DIN rail mounting, screw mounting |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Outer Dimensions |
17.5x90x90 mm |
Suitable For |
(Wire type) Stranded wire, solid wire, ferrule terminal (cross-sectional area) 0.25 to 1.5 mm ² (AWG24 to 16) |
Input Type |
Thermocouple: K, J, T, E Platinum resistance thermometer: Pt100, Pt1000 |
Case Material |
PC UL94-V0 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Supply Voltage |
AC100 to 240 |
Output Type |
Transistor (NPN output) |
Storage Temperature |
-25 to +65℃ |
Width (mm) |
17.5 |
Manufacturer Part Number |
K8DT-TH1TA |
Rating |
(Transistor output) Contact configuration: 1a (NPN transistor) Rated voltage: 24 VDC (maximum voltage: 26.4 VDC) Maximum current: 50 mA DC |
Exterior Color |
(Case) N1.5 |
Input Power |
AC100 to 240 V |
Altitude (m) |
2000 or less |
Pattern Setting |
Rotary type DIP switch setting (3 stations) |
