| Mass (g) | About 22 |
| Contact Configuration | 3a1b |
| Mechanical Durability | 10 million times (opening and closing frequency 36,000 times / h) |
| Coil Resistance | 6400 Ω |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mass (g) |
About 22 |
Contact Configuration |
3a1b |
Mechanical Durability |
10 million times (opening and closing frequency 36,000 times / h) |
Coil Resistance |
6400 Ω |
Rated Voltage (V) |
DC48 |
Outer Dimensions (mm) |
40 or lessx13 or lessx24 or less |
No. of Pole |
4 |
Withstand Voltage |
Between coil contacts, between different poles (except between poles 3-4): AC4000V 50/60Hz 1min<br> Between different poles (between 3-4 poles) AC2500V 50/60Hz 1min<br> Between same polarity contacts: AC1500V 50/60Hz 1min |
Monotaro ID |
46621897 |
Type of Product |
Safety Relay |
Model No |

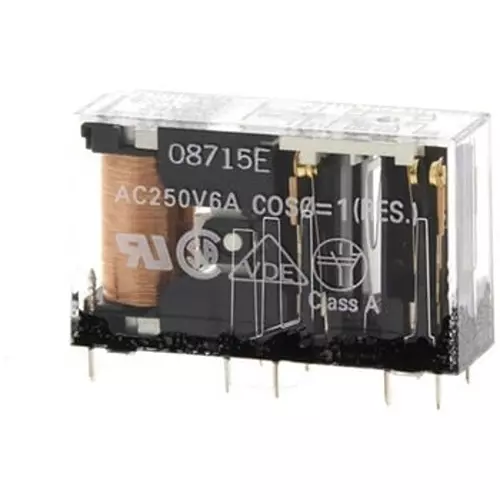

G7SA-3A1B-DC48 |
Contact Material |
Au plating + Ag alloy |
Electrical Durability |
100,000 times or more (rated load, switching frequency 1800 times / h) |
Maximum Switching Frequency (times/h), at Rated Load |
1800 |
Failure Rate P Level (Reference Value: at Switching Frequency 120 times/min) |
DC5V 1mA (opening and closing frequency 300 times / min) |
Maximum Switching Frequency (times/h), Mechanical |
36000 |
Protection Class |
Flux resistant type |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Response Time |
10 ms or less |
Terminal Structure |
Printed circuit board terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
-40 to +85 (with no icing or condensation) |
Contact Resistance (ohm) |
100 or less (DC5V 1A voltage drop method) |
Insulation Resistance (MOhm) |
1000 mohm or more (DC500 V insulation resistance meter) |
