| Mass (g) | About 0.03 |
| Terminal Shape | Surface mount terminal |
| Contact Configuration | 1A |
| Type | Printed circuit board relays |
Mass (g) |
About 0.03 |
Terminal Shape |
Surface mount terminal |
Contact Configuration |
1A |
Type |
Printed circuit board relays |
Monotaro ID |
8588011 |
Type of Product |
Mos Fet Relay |
Standard |
RoHS Directive, UL (to be applied) |
Model No |
G3VM-21LR1 |
Part No |
64-3361-56 |
Rated Current (mA) |
Input: 50 (max) (at an ambient operating temperature of 25°C) |
Withstand voltage (V / min) |
Between input and output: AC 1500 50 / 60 Hz (operating ambient temperature 25°C) |
Shape |

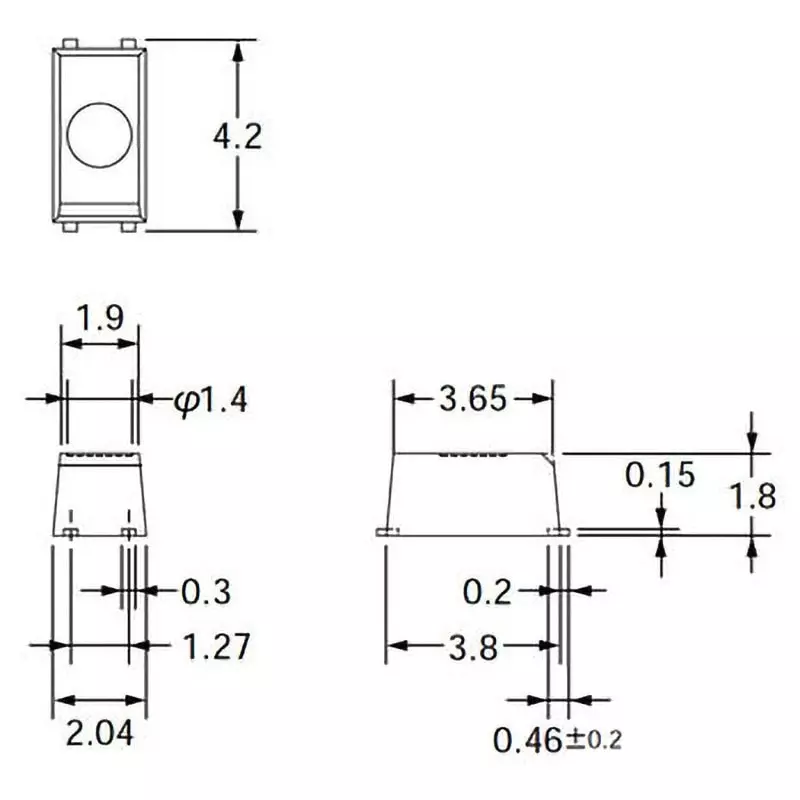

SSOP 4-pin |
Terminal Fitting Type |
Surface mount |
Leakage Current (mA) |
1 nA or less (at 20 V DC) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Load Voltage |
AC 20 peak V |
Output on resistance (Ω) |
1.2 (6-pin type A connection) (at ambient operating temperature 25°C) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Insulation Type |
Photo diode coupler |
Operation Ambient Temperature (°C) |
-20 to +85 (with no icing or condensation) |
Continuous load current (mA) |
450 (6-pin type A connection) (at ambient operating temperature 25°C) |
