Ships within 25 days
View
View
View
View
| Mass (g) | About 40 |
| CR Circuit | None |
| Operating Temperature Range | -25 to 55℃ |
| Contact Configuration | 1C Contact |
Mass (g) |
About 40 |
CR Circuit |
None |
Operating Temperature Range |
-25 to 55℃ |
Contact Configuration |
1C Contact |
Type |
Bi-Power Relay |
No. of Pole |
1-Pole |
Power Consumption |
About 0.9 to 1.1 (60Hz) |
Monotaro ID |
2492061 |
Type of Product |
Bi-Power Relay |
Shock Resistance |
1000m/s² |
Classification |
Standard type |
Shape |
LY1F |
Protection Class |
In a case |
Coil Voltage |
AC100/110 V |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |

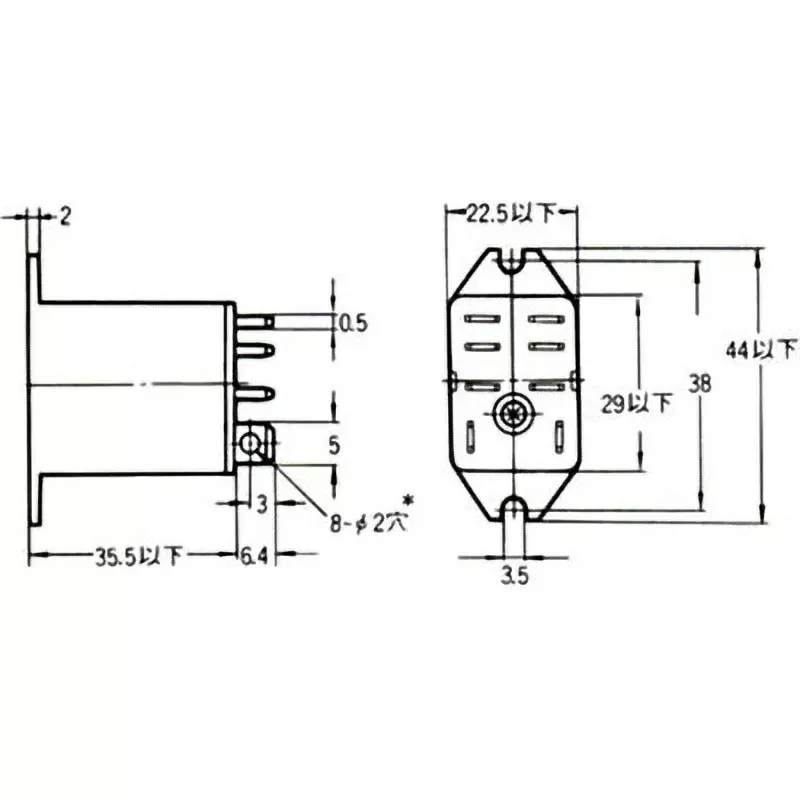

Outer Dimensions |
22.5 x41.9 x44 mm or less |
With or Without Diode |
None |
Terminal Structure |
Case top mounting |
No. Of Pin |
8 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25 to 55 (with no icing or condensation) <br> -25 to 70 ° C when current is 4A or less |
Manufacturer Part Number |
LY1F AC100/110 |
Contact Resistance (ohm) |
50 or less (DC5V 1A voltage drop method) |
Insulation Resistance (MOhm) |
100 or more (Measure the same part as the withstand voltage with a DC500V insulation resistance meter) |
