Ships within 25 days
View
View
View
View
| Mass (g) | About 17 |
| Terminal Shape | Printed circuit board terminal |
| Return Voltage | 15% or more of the rated voltage |
| Contact Configuration | 2c |
Mass (g) |
About 17 |
Terminal Shape |
Printed circuit board terminal |
Return Voltage |
15% or more of the rated voltage |
Contact Configuration |
2c |
Type |
Power relay |
Rated Voltage (V) |
DC12 |
No. of Pole |
2-pole |
Monotaro ID |
39065241 |
Operating Voltage |
(set voltage/Reset voltage) 70% or less of rated voltage |
Type of Product |
Power Relay |

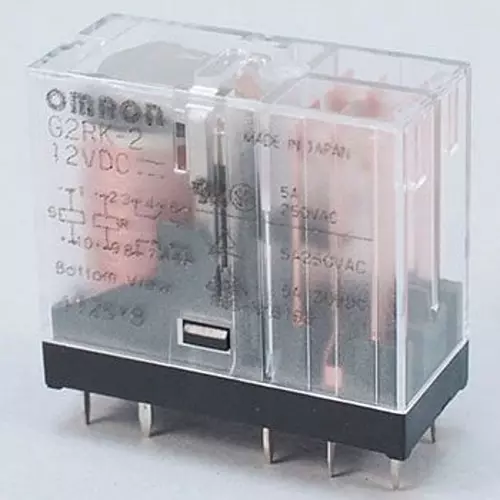

Model No |
G2RK-2 DC12 |
Shock Resistance |
1000m/s² |
Ambient Humidity to Use |
5 to 85%RH |
Classification |
2-winding latching |
Power Consumption (mW) |
(set coil) Approx. 850, (reset coil) Approx. 600 |
Protection Class |
Flux resistant type |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
Vibration Resistance (Destruction) |
10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
Terminal Structure |
Printed circuit board terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
-40~+70 (no freezing or condensation) |
Contact Resistance (ohm) |
50 or less (DC5V 1A voltage drop method) |
Insulation Resistance (MOhm) |
1000 mohm or more (Measure the same part as the withstand Voltage with a DC500 V insulation resistance meter) |
Rated Coil Voltage |
DC12 |
