Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 5 |
| Terminal Shape | Printed circuit board terminal |
| Return Voltage | 5% or more |
| Contact Configuration | 2C |
Mass (g) |
About 5 |
Terminal Shape |
Printed circuit board terminal |
Return Voltage |
5% or more |
Contact Configuration |
2C |
Type |
Printed circuit board relays |
Rated Voltage (V) |
12 DC V |
No. of Pole |
2-Pole |
Monotaro ID |
8588072 |
Operating Voltage |
75% or less |
Type of Product |

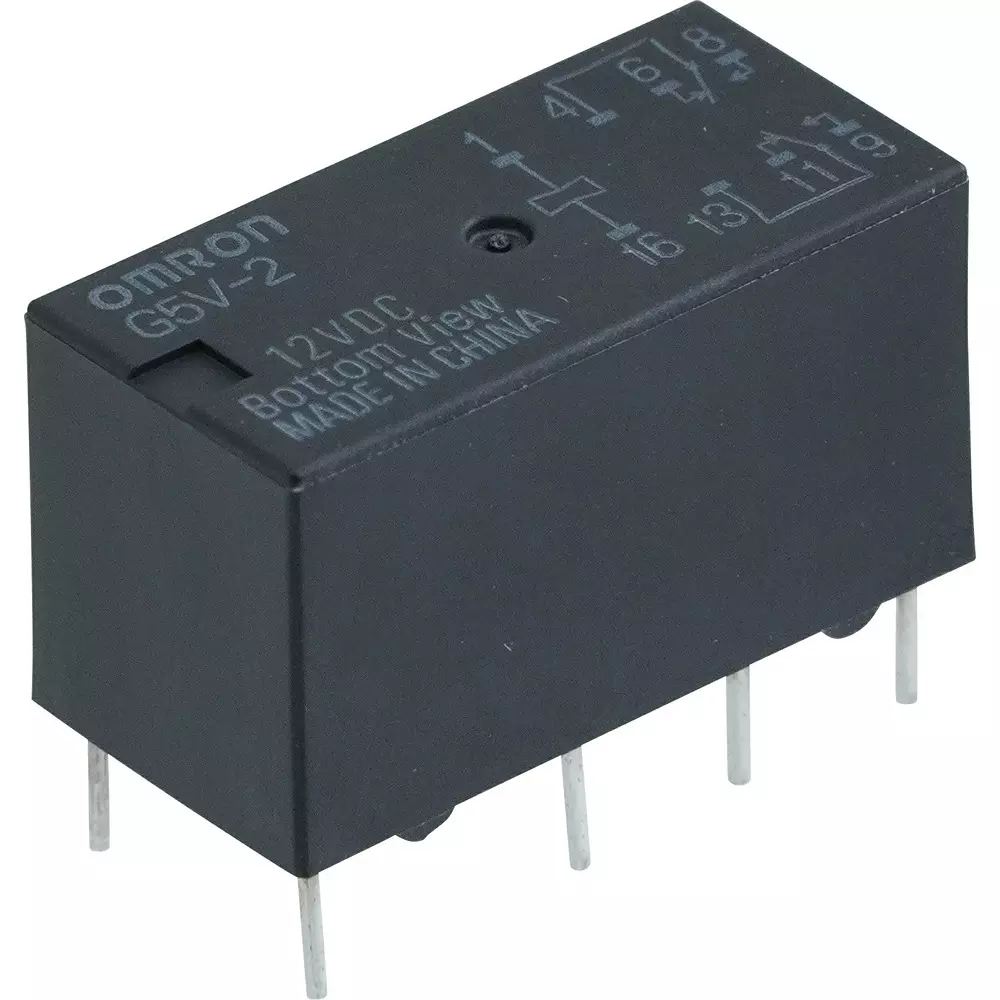

Mini Relay |
Standard |
RoHS Directive, UL60950, UL508, CSA (C22.2 No.0, No.14, No.950) |
Model No |
G5V-2 DC12 |
Shock Resistance |
1000m/s² |
Ambient Humidity to Use |
5 to 85%RH |
Series |
G5V-2 Series |
Classification |
Standard type |
Power Consumption (mW) |
About 500 |
Protection Class |
Plastic seal type |
Coil Voltage |
DC12 V |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
Terminal Structure |
Printed circuit board terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25 to +65 (with no icing or condensation) |
Manufacturer Part Number |
G5V-2 DC12 |
Contact Resistance (ohm) |
50 or less (DC1V 10mA voltage drop method) |
Insulation Resistance (MOhm) |
1000 or more (DC500V mega) |
