| Mass (g) | About 3.5 |
| Terminal Shape | Printed circuit board terminal |
| Contact Configuration | 2c |
| Mechanical Durability | 100 million times (opening and closing frequency 36,000 times / h) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mass (g) |
About 3.5 |
Terminal Shape |
Printed circuit board terminal |
Contact Configuration |
2c |
Mechanical Durability |
100 million times (opening and closing frequency 36,000 times / h) |
Type |
Printed circuit board relays |
Rated Voltage (V) |
DC5 |
No. of Pole |
2-pole |
Monotaro ID |
39068355 |
Type of Product |
Mini Relay |
Model No |

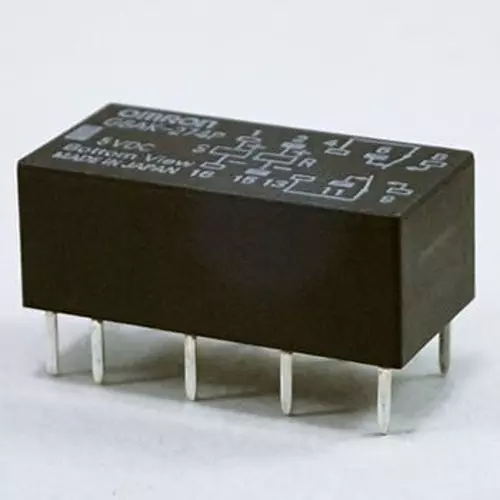

G6AK-274P DC5 |
Shock Resistance |
1000m/s² |
Ambient Humidity to Use |
5 to 85%RH |
Protection Class |
Plastic seal type |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55 to 10Hz Single amplitude 1.65 mm (double amplitude 3.3 mm) |
Shock Resistance (Malfunction) |
300 |
Vibration Resistance (Destruction) |
10 to 55 to 10 Hz, single amplitude 2.5 mm (double amplitude 5 mm) |
Terminal Structure |
Printed circuit board terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
-40 to +70 (with no icing or condensation) |
Contact Resistance (ohm) |
50 or less (: DC1V 10mA voltage drop method) |
Insulation Resistance (MOhm) |
1000 mohm or more (at 500 V DC) (except between set and reset coils) |
Specifications |
2-winding latching type |
Rated Coil Voltage |
DC5 |
