Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 17 |
| Terminal Shape | Printed circuit board terminal |
| Return Voltage | 15% or more of the rated voltage |
| Contact Configuration | 1C |
Mass (g) |
About 17 |
Terminal Shape |
Printed circuit board terminal |
Return Voltage |
15% or more of the rated voltage |
Contact Configuration |
1C |
Mechanical Durability |
20 million times or more (opening/closing frequency 18,000 times/h) |
Type |
Power relay |
Coil Resistance |
1100 Ω |
No. of Pole |
1 Pole |
Monotaro ID |
47826635 |
Operating Voltage |
70% or less of rated voltage |
Type of Product |
Power Relay |
Model No |

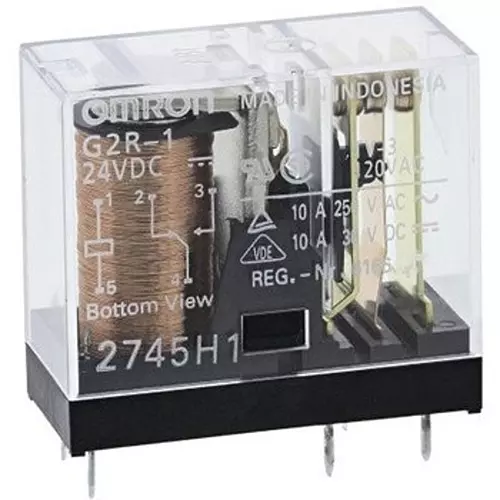

G2R1DC24BYOMI |
Classification |
Standard type |
Rated Current (mA) |
21.8 |
Electrical Durability |
100,000 times or more (rated load opening / closing frequency 1800 times / h) |
Protection Class |
Flux resistant type (T + type is closed type) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Outer Dimensions, Length L x Width W x Height H (mm) |
29x13x25.5 |
Ambient Humidity (% RH) |
5 to 85 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Maximum Permissible Voltage (V) |
170% of rated voltage (at 23 ° C) |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
-40~+70 (no freezing or condensation) |
Contact Resistance (ohm) |
30 or less |
Insulation Resistance (MOhm) |
1000 mohm or more (Measure the same part as the withstand Voltage with a DC500 V insulation resistance meter) |
Specifications |
UL508, CSA22.2, EN + 61810-1, SEV, SEMKO. + G2R series. + General-purpose board power relay used for various in-home and co mmercial applications + creepage distance and clearance: + 8 + mm + H + 25.5 +x+ W + 13 +x+ D + 29 + mm |
Coil Inductance (H) / Arm. ON |
Reference value: 8.55 |
