| Contact Configuration | SPST |
| Coil Resistance | 230 |
| No. of Pole | 1 |
| Monotaro ID | 65213410 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Contact Configuration |
SPST |
Coil Resistance |
230 |
No. of Pole |
1 |
Monotaro ID |
65213410 |
Type of Product |
Power Relay |
Model No |

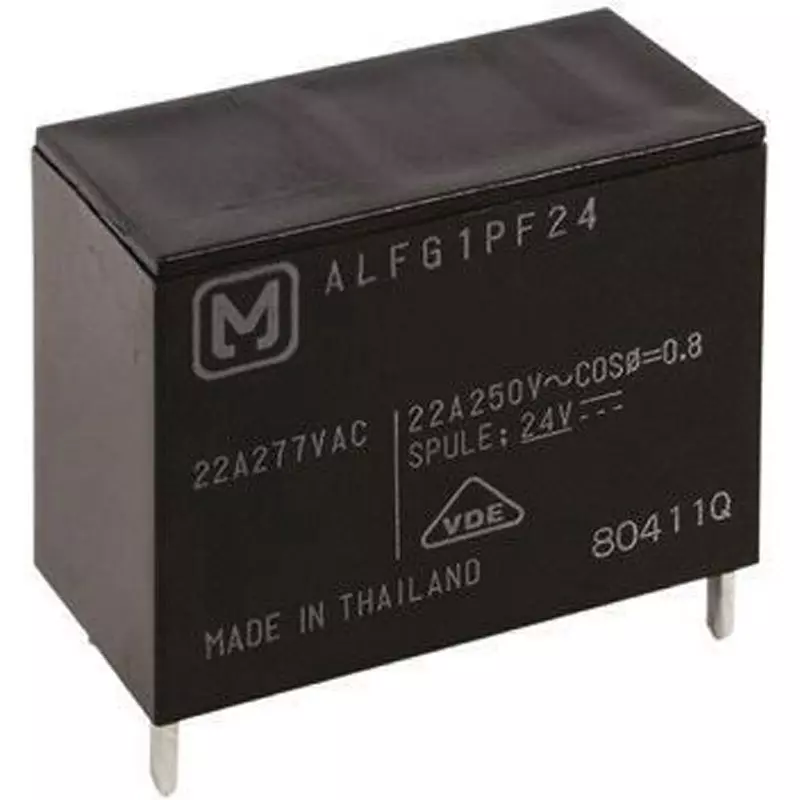

ALFG1PF18 |
RoHS Directive |
Correspondence |
Coil Voltage |
18/ DC |
Terminal Type |
Through hole |
Type of Sign |
Board mounting |
Length (mm) |
30.1 |
Switching Current |
22 Amp |
Country of Origin |
Japan |
Minimum Operating Temperature |
-40 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Coil Electricity (mW) |
1.4 W |
Specifications |
Ul, C-Ul, Vde. Alfg Series. These Compact Power Relays Are Ideal For Photovoltaic Inverters. The Coil Holding Voltage Can Be Reduced To 35% Of The Nominal Coil Voltage (Ambient Temperature: 20 °C), Contributing To Energy Savings In Equipment. Applications For These Compact Power Relays Include Photovoltaic Power Generation Systems (Photovoltaic Inverters), Uninterruptible Power Supplies, Home Appliances, And Office Equipment. . Large Capacity Low Coil Holding Voltage High Insulation Resistance High Surge Breakdown Voltage: 6 Kv Typical Applications: Photovoltaic Inverters, Uninterruptible Power Supplies, Office Equipment |
Maximum Switching Power |
5.5 AC kVA |
Latch Type |
None |
