| Terminal Shape | Printed Circuit Board Terminal |
| Operating Temperature Range | -40-65 |
| Contact Configuration | 1 Amp |
| Coil Resistance | 720 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Terminal Shape |
Printed Circuit Board Terminal |
Operating Temperature Range |
-40-65 |
Contact Configuration |
1 Amp |
Coil Resistance |
720 |
Monotaro ID |
47763949 |
Type of Product |
Power Relay |
Application |
Electric power |
Model No |

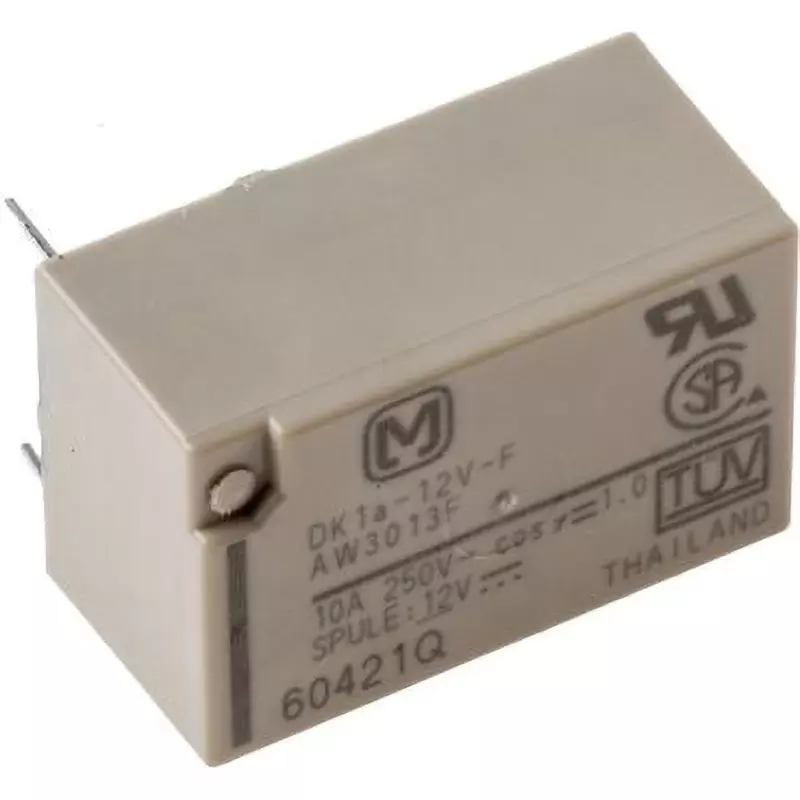

DK1A12F |
Rated Current (mA) |
16.600000000000001 |
Protection Class |
Plastic seal |
Terminal Type |
Through hole |
Height (mm) |
9.6999999999999993 |
Length (mm) |
20 |
Switching Current |
10 Amp |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Maximum Switching Voltage (AC) |
250 V |
Maximum Switching Voltage (DC) |
125 V |
Specifications |
UL, CSA, TUV.DK series relays. This board mounted miniature power relay achieves high capacity, high sensitivity and high breakdown voltage. The closed structure enables automatic cleaning. Typical applications include power switching, industrial machinery, PLCs, temperature controllers, timers, and consumer electronics. .Compact, large capacity, high sensitivity, nominal operating power 200mW, high surge withstand voltage, 10,000V seal structure between contacts and coil, small, H10xW20xD12.5mm |
Rated Coil Voltage |
DC12 |
Maximum Allowable Contact Current (A) |
10(AC)/10(DC) |
Contact Rated Control Capacity (Resistive Load) |
AC250V 10A/DC30V 10A |
Maximum Allowable Contact Voltage (V) |
AC250/DC125(0.2 A) |
Operational Function |
Non-Latching Type |
