| Terminal Shape | Printed Circuit Board Terminal |
| Contact Configuration | 2a1b |
| Monotaro ID | 47786288 |

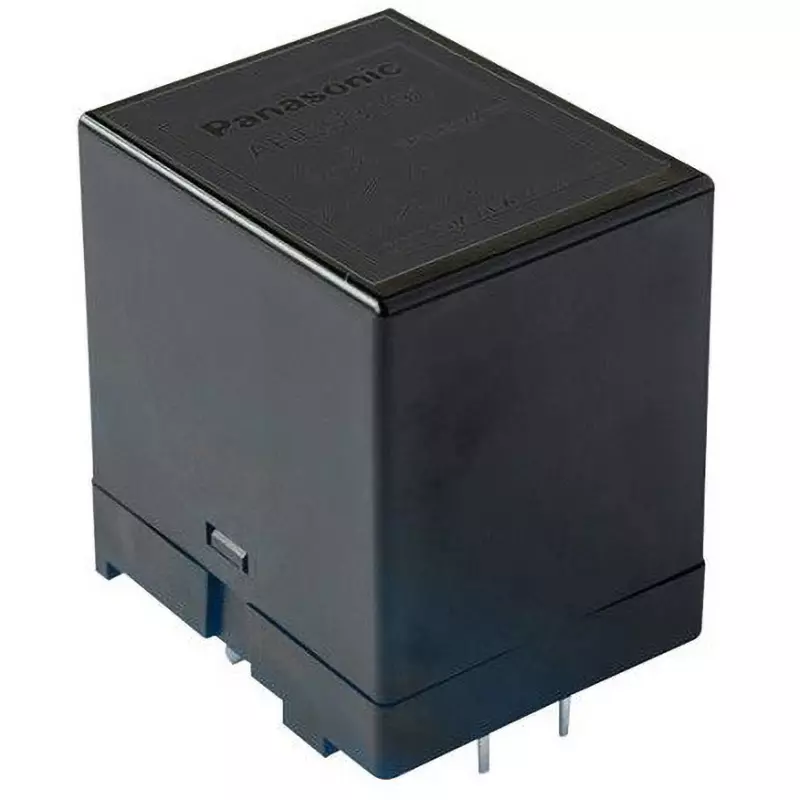

| Type of Product | Power Relay |
Terminal Shape |
Printed Circuit Board Terminal |
Contact Configuration |
2a1b |
Monotaro ID |
47786288 |
Type of Product |
Power Relay |
Model No |
AHES4292 |
Rated Current (mA) |
78 |
Protection Class |
Flux tight |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Rated Coil Voltage |
DC 24 |
Maximum Allowable Contact Current (A) |
40 (when the ambient temperature is 70℃ or less) / 35 (when the ambient temperature is 70 to 85℃) (A contact), 1 (B contact) |
Contact Rated Control Capacity (Resistive Load) |
AC227V 40A/DC110V 5A (A contact), AC227V 1A/DC30V 1A (B contact) |
Maximum Allowable Contact Voltage (V) |
AC480/DC110 (A contact), AC277/DC30 (B contact) |
Operational Function |
Non-Latching Type |
