| Contact Configuration | 4PDT |
| Coil Resistance | 640 Ω |
| No. of Pole | 4 |
| Type of Product | Power Relay |
Contact Configuration |
4PDT |
Coil Resistance |
640 Ω |
No. of Pole |
4 |
Type of Product |
Power Relay |
Application |
General Purpose |
Contact Material |
Silver Alloy |
Mounting Type |
Plug In |
Series |
R4N |
Coil Voltage |
24 V DC |
Height |
35.5 mm |
Length |
27.4 mm |
Terminal Type |
Plug In |
Latching |
No |
Switching Current |
6 Amp |
Depth |
21 mm |
Coil Power Consumption |
900 mW |
Country of Origin |
Poland |
Isolation Coil To Contact |
2.5 kV AC |
Life Expectancy |
>10000 (Electrical) cycles, >20000000 (Mechanical) cycles |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-40°C |
Name of Manufacturer/Packer/Importer |
Relpol |
Maximum Switching Power AC |
1.5 kVA |
Maximum Switching Voltage DC |
24 V DC |
Maximum Switching Voltage (AC) |
250 V |
Maximum Switching Voltage (DC) |
24 V DC |
Product Code |
1232076 |
Manufacturer Part Number |

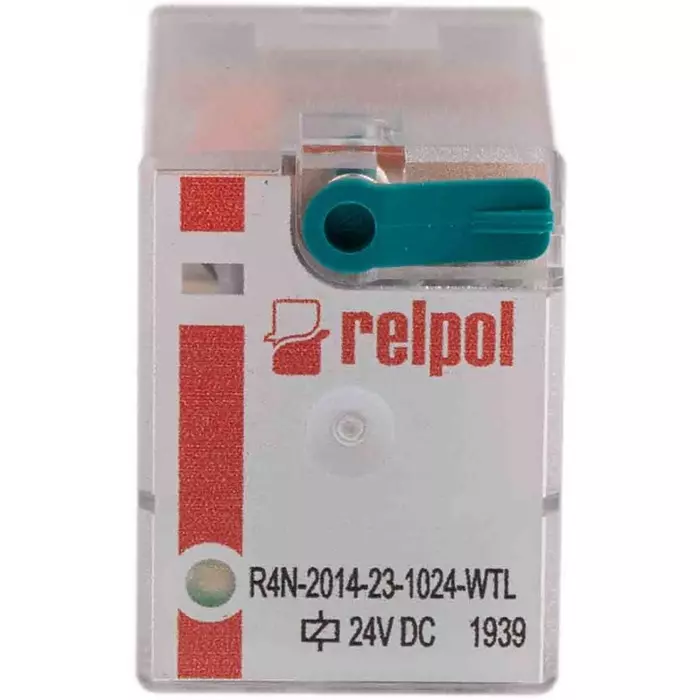

R4N-2014-23-1024-WTL |
Maximum Switching Voltage AC |
250 V |
Standards Met |
CE, CSA, cULus, EAC, LR, VDE |
