| Contact Configuration | 4PDT |
| Coil Resistance | 16100 Ω |
| No. of Pole | 4 |

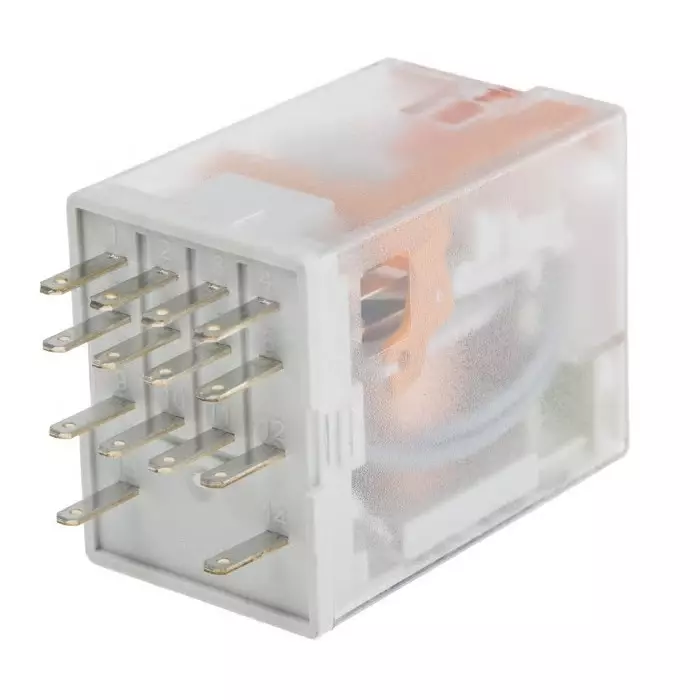

| Type of Product | Power Relay |
Contact Configuration |
4PDT |
Coil Resistance |
16100 Ω |
No. of Pole |
4 |
Type of Product |
Power Relay |
Application |
General Purpose |
Contact Material |
Silver Alloy |
Mounting Type |
Plug In |
Series |
R4N |
Coil Voltage |
230 V AC |
Height |
27.5 mm |
Length |
21.2 mm |
Terminal Type |
Plug In |
Latching |
No |
Switching Current |
6 Amp |
Depth |
35.6 mm |
Coil Power Consumption |
1.6 W |
Country of Origin |
Poland |
Isolation Coil To Contact |
2.5 kV AC |
Life Expectancy |
20000000 (Mechanical) cycles, 50000 (Electrical) cycles |
Maximum Operating Temperature |
+55°C |
Minimum Operating Temperature |
-40°C |
Name of Manufacturer/Packer/Importer |
Relpol |
Maximum Switching Voltage DC |
24 V DC |
Maximum Switching Voltage (AC) |
250 V |
Maximum Switching Voltage (DC) |
24 V DC |
Product Code |
8052197 |
Manufacturer Part Number |
R4N-2014-23-5230-WTL |
Maximum Switching Voltage AC |
250 V |
