Ships within 15 days
View
View
View
View
| Contact Configuration | DPDT |
| Coil Resistance | 640 Ω |
| No. of Pole | 2 |
| Type of Product | Power Relay |
Contact Configuration |
DPDT |
Coil Resistance |
640 Ω |
No. of Pole |
2 |
Type of Product |
Power Relay |
Application |
General Purpose |
Contact Material |
Silver Alloy |
Mounting Type |
Plug In |
Series |
R2N |
Coil Voltage |
24 V DC |
Height |
27.5 mm |
Length |
21.2 mm |
Terminal Type |
Plug In |
Latching |
No |
Switching Current |
12 Amp |
Depth |
35.6 mm |
Coil Power Consumption |
900 mW |
Country of Origin |
Poland |
Isolation Coil To Contact |
2.5 kV AC |
Life Expectancy |
>100000 (Electrical) cycles, 20000000 (Mechanical) cycles |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-40°C |
Name of Manufacturer/Packer/Importer |
Relpol |
Maximum Switching Voltage DC |
24 V DC |
Product Code |
8052150 |
Manufacturer Part Number |

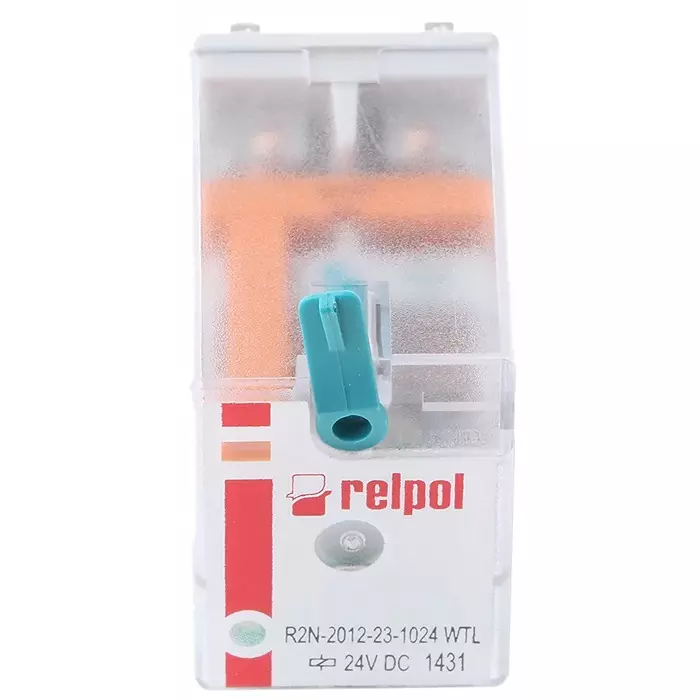

R2N-2012-23-1024-WTL |
Maximum Switching Voltage AC |
440 V |
