| Contact Configuration | SPST |
| Coil Resistance | 400Ω |
| No. of Pole | 1 |
| Type of Product | Power Relay |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Contact Configuration |
SPST |
Coil Resistance |
400Ω |
No. of Pole |
1 |
Type of Product |
Power Relay |
Application |
Power |
Contact Material |
Silver Alloy |
Mounting Type |
PCB Mount |
Coil Voltage |
12V dc |

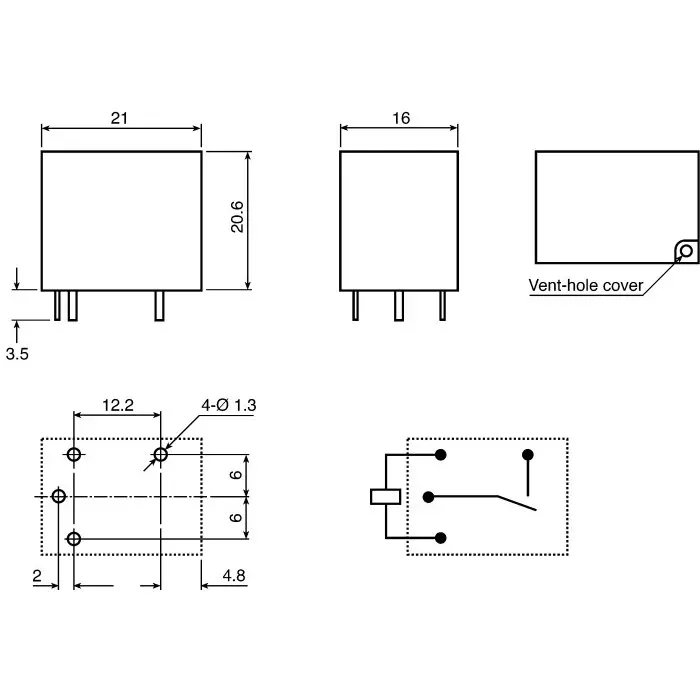

Height |
20.6mm |
Length |
21mm |
Terminal Type |
Through Hole |
Latching |
No |
Switching Current |
16A |
Depth |
16mm |
Coil Power Consumption |
360mW |
Country of Origin |
China |
Isolation Coil To Contact |
2.5kV ac |
Maximum Operating Temperature |
+85°C |
Minimum Operating Temperature |
-40°C |
Name of Manufacturer/Packer/Importer |
RS PRO |
Maximum Switching Power AC |
4.7 kVA |
Maximum Switching Voltage (AC) |
400V ac |
Standards Met |
IEC 60335-1, RoHS Compliant, UL E134517, VDE 40017837 |
Operating Cycle |
100000 (Electrical) cycles, 10000000 (Mechanical) cycles |
