| Contact Configuration | SPDT |
| Coil Resistance | 620Ω |
| No. of Pole | 1 |

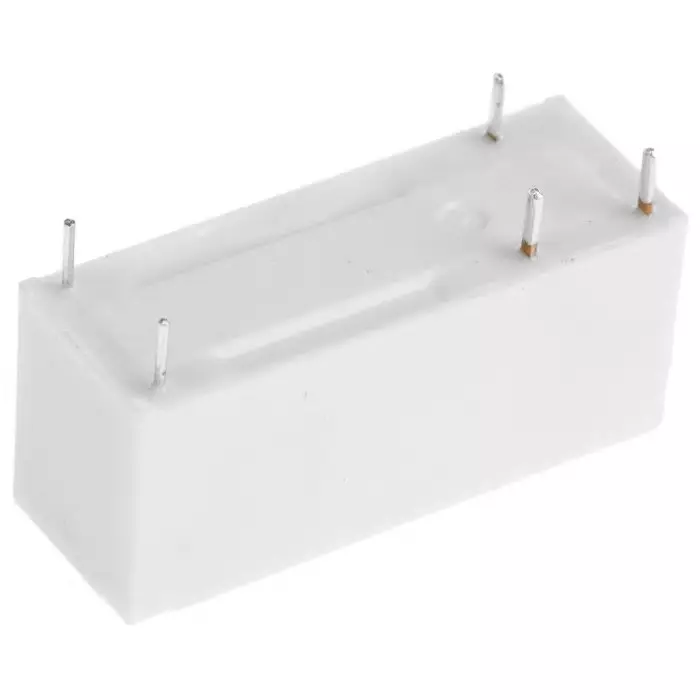

| Type of Product | Power Relay |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Contact Configuration |
SPDT |
Coil Resistance |
620Ω |
No. of Pole |
1 |
Type of Product |
Power Relay |
Application |
Power |
Contact Material |
Silver Alloy |
Mounting Type |
PCB Mount |
Coil Voltage |
12V dc |

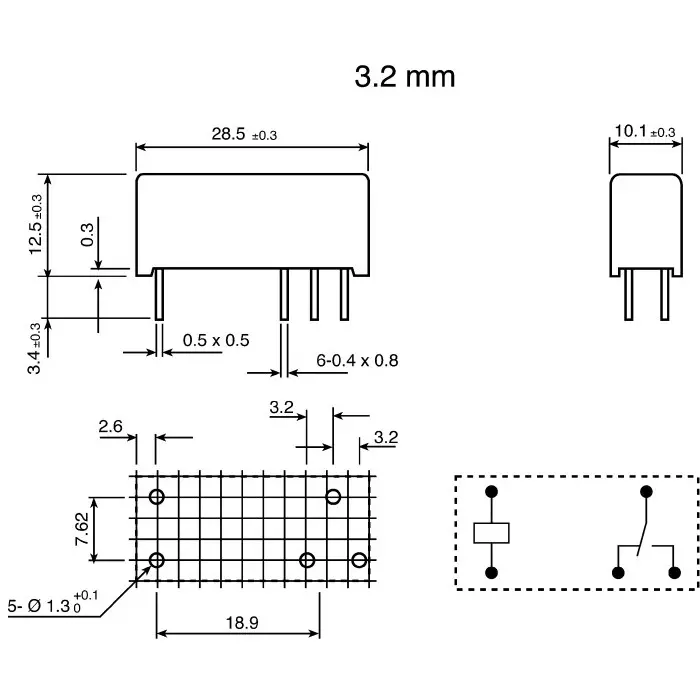

Height |
12.5mm |
Length |
28.5mm |
Terminal Type |
Through Hole |
Latching |
No |
Switching Current |
10A |
Depth |
10.1mm |
Coil Power Consumption |
290mW |
Country of Origin |
China |
Isolation Coil To Contact |
5kV ac |
Maximum Operating Temperature |
+85°C |
Minimum Operating Temperature |
-40°C |
Name of Manufacturer/Packer/Importer |
RS PRO |
Maximum Switching Power AC |
2.5 kVA |
Maximum Switching Power DC |
300 W |
Maximum Switching Voltage DC |
125V dc |
Maximum Switching Voltage (AC) |
440V ac |
Maximum Switching Voltage (DC) |
125V dc |
Standards Met |
CQC CQC04001011425, RoHS Compliant, UL E133481, VDE File No.:40010480 |
Operating Cycle |
100000 (Electrical) cycles, 10000000 (Mechanical) cycles |
