Ships within 15 days

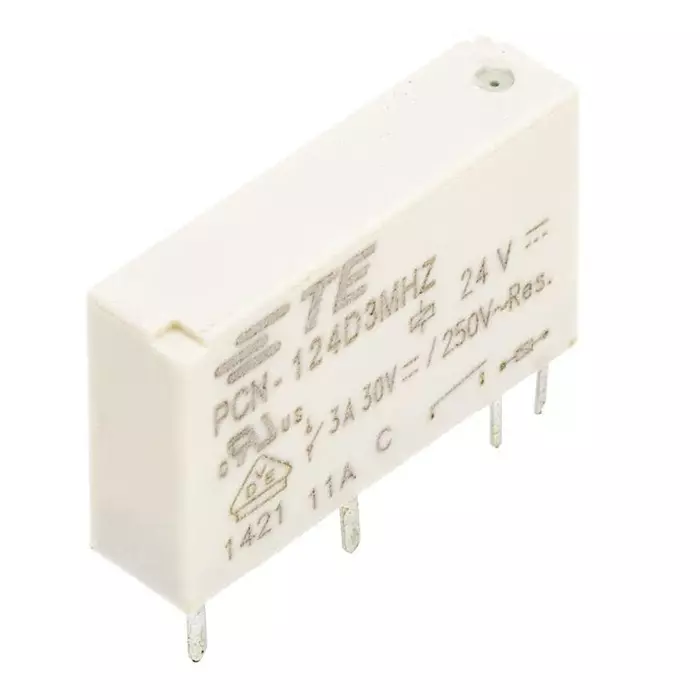

TE Connectivity PCN Power Relay PCB Mount SPST Through Hole 24 V DC 4800 Ω, PCN-124D3MHZ000
te-connectivity-pcn-power-relay-pcb-mount-spst-through-hole-24-v-dc-4800-pcn-124d3mhz000
te-connectivity-pcn-power-relay-pcb-mount-spst-through-hole-24-v-dc-4800-pcn-124d3mhz000

TE Connectivity PCN Power Relay PCB Mount SPST Through Hole 24 V DC 4800 Ω, PCN-124D3MHZ000

Visit the TE CONNECTIVITY Store
Available offers
Flat ₹300 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹200 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features
Contact Configuration SPST
Coil Resistance 4800 Ω
No. of Pole 1
Type of Product Power Relay
More TE CONNECTIVITY Power Relay products More Power Relay products
warranty Warranty as per brand
original products 100% Original Products
secure payments Secure payments
buyer protection 100% Buyer protection
top brands Top Brands

Contact Configuration

SPST

Coil Resistance

4800 Ω

No. of Pole

1

Type of Product

Power Relay

Application

PCB

Contact Material

Silver Nickel Alloy

Mounting Type

PCB Mount

Series

PCN

Coil Voltage

24 V DC

Height

12.5 mm

Length

20 mm

Terminal Type

Through Hole

Latching

No

Switching Current

3 Amp

Depth

5 mm

Country of Origin

China

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-30°C

Name of Manufacturer/Packer/Importer

TE Connectivity

Maximum Switching Power AC

750 VA

Product Code

4940328

Manufacturer Part Number

PCN-124D3MHZ000
