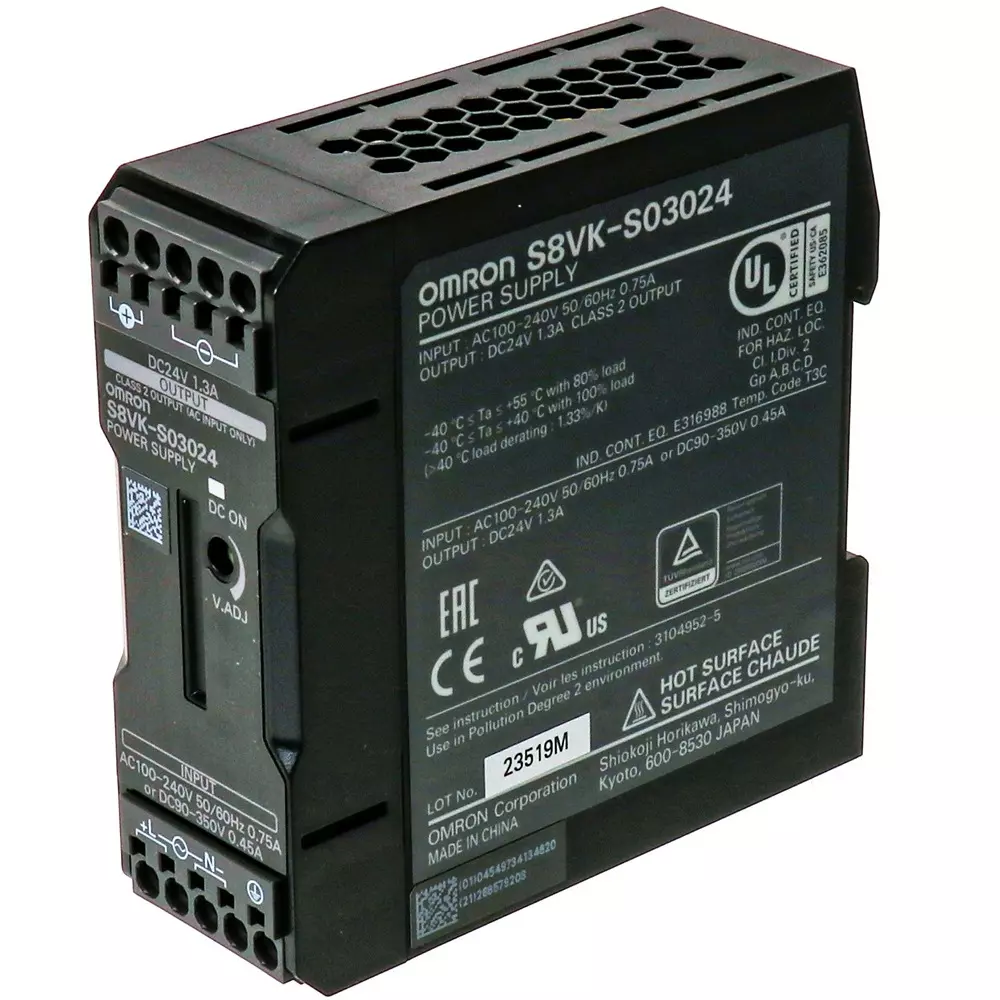

Omron Switching Power Supply Single-Phase 230 V AC Input, S8VK-S03024

Name: Omron Switching Power Supply Single-Phase 230 V AC Input, S8VK-S03024
Brand: Omron
SKU: ITS.POW.136933578
Price: 8967 INR
Availability: InStock

Visit the Omron Store

EMI starts at ₹797/month. No Cost EMI available.

Available offers

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Flat ₹200 off on Order above ₹6000 | Valid for REPEAT Business User

View

Flat ₹400 off on Order above ₹10,000 | Valid for NEW Business Users

View

Features

Type of Product	Switching Power Supply
Standard	EMS: EN 61204-3 high severity levels/SEMI standard: SEMI F47-0706 (AC200-240V input) compliant
Storage Temperature	-40 to 85℃
Country of Origin	Japan

More Omron Power Supply/SMPS products More Power Supply/SMPS products

Warranty as Per Brand

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Switching Power Supply
Standard	EMS: EN 61204-3 high severity levels/SEMI standard: SEMI F47-0706 (AC200-240V input) compliant
Storage Temperature	-40 to 85℃
Country of Origin	Japan
Monotaro ID	31292179
Safety Standard	UL Listing: UL 508(For 30W and 60W only Class2 Output: Per UL 1310)・cUL: CSA C22.2 No.107.1(For 30W and 60W only Class2 Output: Per CSA C22.2No.223)・UL UR: UL 62368-1(Recognition) OVCⅡ(≦3000m)Pol2・cUR：CSA C22.2 No.62368-1 OVCⅡ(≦3000m)Pol2・EN：EN 62477-1 OVCⅢ(≦2000m)OVCⅡ(2000m＜and≦3000m)Pol2, EN 62368-1 OVCⅡ(≦3000m)Pol2・PELV(EN/IEC 60204-1) compliant・EN/IEC 61558-2-16:2009+A1:2013 compliant, RCM (EN61000-6-4)
Name of Manufacturer/Packer/Importer	Omron Corporation
Rated Input Voltage (V)	Single-phase AC100 to 240 (allowable range single AC85 to 264, DC90 to 350)
Outer Dimensions (mm)	32x90x86(WxDxH)
Manufacturer Part Number	S8VK-S03024
Capacity (W)	30
Specifications	Single-phase 230V AC input: 86% typ.
Operation Ambient Temperature (°C)	-40 to 70 (with derating depending on temperature) (no condensation or freezing)
Connection Type	Terminal block
Inrush current (A)	AC115V input: 16typ, AC230V input: 32typ (25℃, cold start)
Mass (g)	250 or less
Structure	Type with cover
Insulation Resistance (MOhm)	100 or more, DC500V (between output terminals) and (between input terminals and PE terminals)
Protection Class	According to IP20, EN / IEC 60529
Rated Output Power (W)	31.2
Rated Output Current (A)	1.3
Service Life	Expectations: 10+ years
Terminal Block	Push-in Plus terminal block
shock Resistance (m per s2)	150 (3 times in 6 directions)
Import Country	Direct Import from Japan
