| Type of Product | Switching Power Supply |
| Type | Replacement time notification function type with display monitor |
| Shape | Directly on DIN rail |
| Storage Temperature | -25 to 65 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Switching Power Supply |
Type |
Replacement time notification function type with display monitor |
Shape |
Directly on DIN rail |
Storage Temperature |
-25 to 65 |
Country of Origin |
Japan |
Function |
Undervoltage detection display: Yes (switchable), displayed on 7-segment LED (character height 8 mm) |
Monotaro ID |
8591527 |
Ambient Humidity to Use |
25-85% (Storage humidity 25-90%) |
Power Factor |
0.9 or more |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Input Voltage (V) |
AC100 to 240 |
Output Voltage (V) |
DC24 |
Manufacturer Part Number |
S8VS-18024A |
Capacity (W) |
180 |
Specifications |
UL Class2 output (UL1310): Not compliant |
Operation Ambient Temperature (°C) |
-10 to 60 (no condensation or freezing) |
Connection Type |
Terminal block |
Mass (g) |
850 or less |
Structure |
Type with cover |
Insulation Resistance (MOhm) |
Between 100 or more (collective output, collective alarm output) and (collective input, ground [earth]) at 500 VDC |
Input Frequency (Hz) |
50/60(47 to 63) |
Rated Output Current (A) |
7.5 |
Recommended Timing to Replace |
Notification display: Yes (switchable)<br> Notification output: Yes (transistor output) DC30V max. 50mA max. |

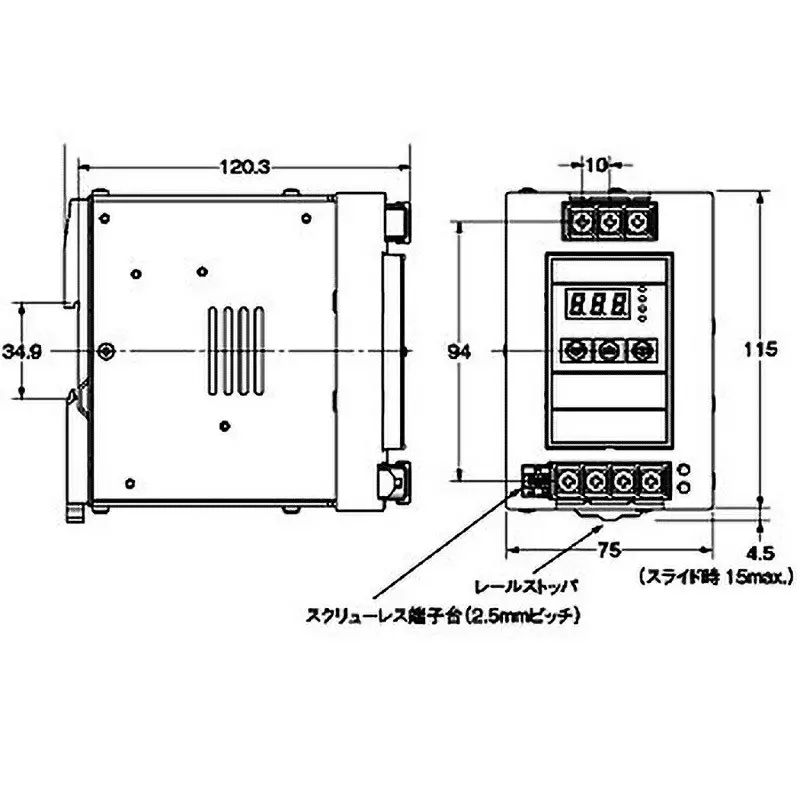

Outer Dimensions |
75x115x125.6 mm |
Alarm Output |
Sink (emitter COM) |
Import Country |
Direct Import from Japan |
