| Type of Product | Switching Power Supply |

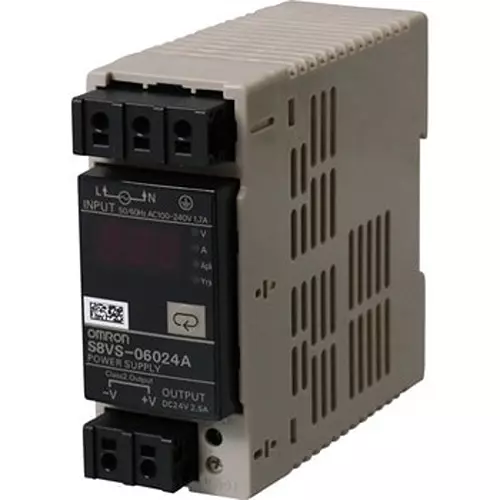

| Model No | S8VS-06024A-F |
| Type | Replacement time notification function type with display monitor |
| Shape | Directly on DIN rail |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Switching Power Supply |
Model No |
S8VS-06024A-F |
Type |
Replacement time notification function type with display monitor |
Shape |
Directly on DIN rail |
Storage Temperature |
-25 to 65℃ |
Country of Origin |
Japan |
Function |
Undervoltage detection display: Yes (switchable), displayed on 7-segment LED (character height 8 mm) |
Monotaro ID |
46620095 |
Safety Standard |
UL 508 (Listing, Class2 Output: Per 1310)<br> CSA C22.2 No.107.1(cUL)(Class2 Output：Per CSA C22.2 No.223)<br> EN 62477-1<br> RCM mark, Korea S mark<br> BIS: IS 13252 (Part 1) |
Pack of |
1 Pcs |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Input Voltage (V) |
AC100 to 240 |
Output Voltage (V) |
DC24 |
Capacity (W) |
60 |
Specifications |
UL Class2 output (UL1310): Compliant |
Operation Ambient Temperature (°C) |
-10 to 60 (no condensation or freezing) |
Connection Type |
Terminal block |
Inrush current (A) |
When AC100V input: 17.5 or less, 14typ.<br> When AC200V input: 35 or less, 28 typ. |
Mass (g) |
330 or less |
Structure |
Type with cover |
Insulation Resistance (MOhm) |
Between 100 mohm or more (collecti Ve output, collecti Ve alarm output) and (collecti Ve input, ground [earth]) at 500 V DC |
Rated Output Current (A) |
2.5 |
Recommended Timing to Replace |
Information display: Available (switched) <br> Announcement output: None |
Outer Dimensions |
40x95x108.1 mm |
Alarm Output |
Cannot output alarm |
Import Country |
Direct Import from Japan |
