| Type of Product | Switching Power Supply |

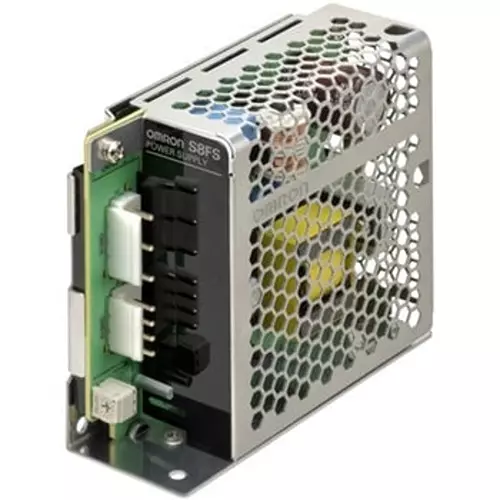

| Model No | S8FS-G03024CDE |
| Standard | EMS: EN 61204-3 high severity levels/SEMI F47-0706 (AC200 V input) |
| Shape | With cover |
Type of Product |
Switching Power Supply |
Model No |
S8FS-G03024CDE |
Standard |
EMS: EN 61204-3 high severity levels/SEMI F47-0706 (AC200 V input) |
Shape |
With cover |
Storage Temperature |
-25 to 75℃ (no condensation or freezing) |
Country of Origin |
Japan |
Monotaro ID |
66517903 |
Safety Standard |
UL 508 (Listing: non-connector type) / UL 62368-1 (Recognition, OVCⅡ[≦3000m], Pol2) / CSA C22.2 No.107.1 (non-connector type) / CSA C22.2 No.62368-1 (non-connector type) / EN 62477-1 (OVCⅢ〔≦2000m〕, OVCⅡ〔2000＜and≦3000m〕, Pol2) / EN/IEC 62368-1 (OVCⅡ[≦3000m], Pol2) / EN/IEC 61558-2-16 compliant / PELV (EN/IEC 60204-1) compliant / RCM (EN61000-6-4) |
Terminal Shape |
Connector |
Load Fluctuation |
Static: 1% or less |
Input Fluctuation |
Static: 0.5% or less |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Input Voltage (V) |
AC100 to 240 |
Type of Sign |
DIN rail mounting |
Operation Ambient Temperature (°C) |
-20 to 70 (Temperature derating) (No condensation or freezing) |
Inrush current (A) |
AC100/200V input: 14/28typ. (25℃, cold start) |
Mass (g) |
250 |
Insulation Resistance (MOhm) |
100 or more, DC500 V (between all output terminals) and (all input terminals) |
Rated Output Power (W) |
30 |
Rated Output Current (A) |
1.5 |
Shock Resistance (m/s²) |
150 (3 times in 6 directions) |
Vibration Resistance |
10 to 55Hz Maximum 4.5G Single amplitude 0.375 mm 2h each in 3 directions |
Import Country |
Direct Import from Japan |
