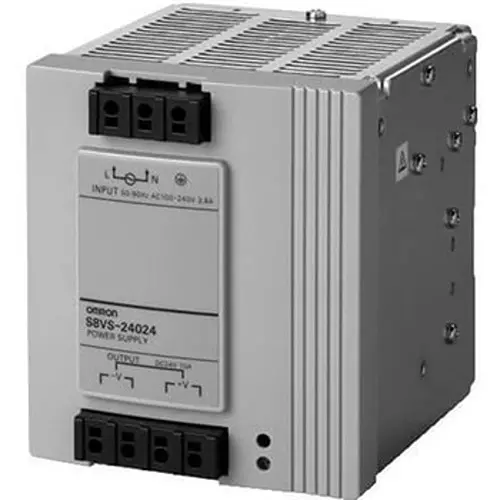

| Type of Product | Switching Power Supply |
| Model No | S8VS-24024-F |
| Type | No display monitor Standard type |
| Shape | Directly on DIN rail |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Switching Power Supply |
Model No |
S8VS-24024-F |
Type |
No display monitor Standard type |
Shape |
Directly on DIN rail |
Storage Temperature |
-25 to 65℃ |
Country of Origin |
Japan |
Function |
Undervoltage detection indication: None |
Monotaro ID |
39096547 |
Ambient Humidity to Use |
25-85% (Storage humidity 25-90%) |
Power Factor |
0.9 or more |
Pack of |
1 Pcs |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Input Voltage (V) |
AC100 to 240 |
Output Voltage (V) |
DC24 |
Capacity (W) |
240 |
Specifications |
UL Class2 output (UL1310): Not compliant |
Operation Ambient Temperature (°C) |
-10 to 60 (no condensation or freezing) |
Connection Type |
Terminal block |
Mass (g) |
1150 or less |
Structure |
Type with cover |
Insulation Resistance (MOhm) |
Between 100 mohm or more (collecti Ve output, collecti Ve alarm output) and (collecti Ve input, ground [earth]) at 500 V DC |
Input Frequency (Hz) |
50/60(47 to 63) |
Rated Output Current (A) |
10 |
Recommended Timing to Replace |
None |
Outer Dimensions |
100x115x124.6 mm |
Alarm Output |
Sink (emitter COM) |
Import Country |
Direct Import from Japan |
