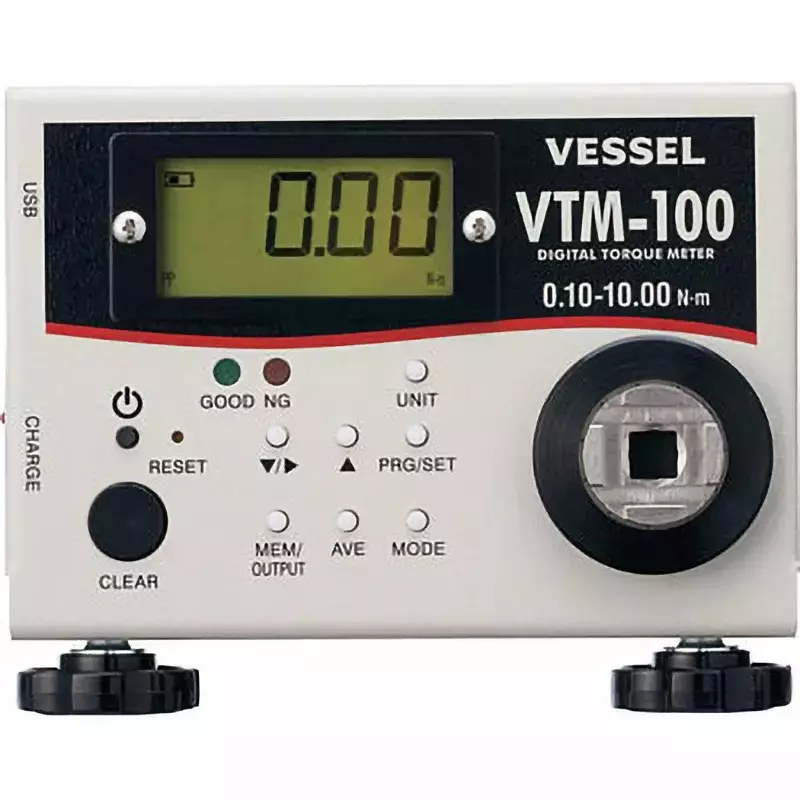

| Model No | VTM-100 |
| Type of Product | Torque Meter |
| Power Supply | NiCad Battery 6 V Cell (700 mAh) |
| Weight | 1 Kg |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
VTM-100 |
Type of Product |
Torque Meter |
Power Supply |
NiCad Battery 6 V Cell (700 mAh) |
Weight |
1 Kg |
Compatibility |
VE-4000(P, AC, EPA)/VE-4500(P, AC, EPA)/VE-5000(P)/VE-6000(P) |
Country of Origin |
Japan |
Monotaro ID |
60950514 |
Accuracy |
[VTM-8] ± 0.5% (Leading: ± 3 Digits for 199 Digits or less), [VTM-10 / 100] ± 0.5% (Leading: ± 1 Digits for 199 Digits or less) |
Display |
LCD4 |
Name of Manufacturer/Packer/Importer |
Vessel Co.Ltd. |
Trusco Part No. |
818-3315 |
Operating Temperature/Humidity Range |
Temperature: 19° to 29° / Humidity: 48 to 63% RH (No Condensation) |
Set Contents |

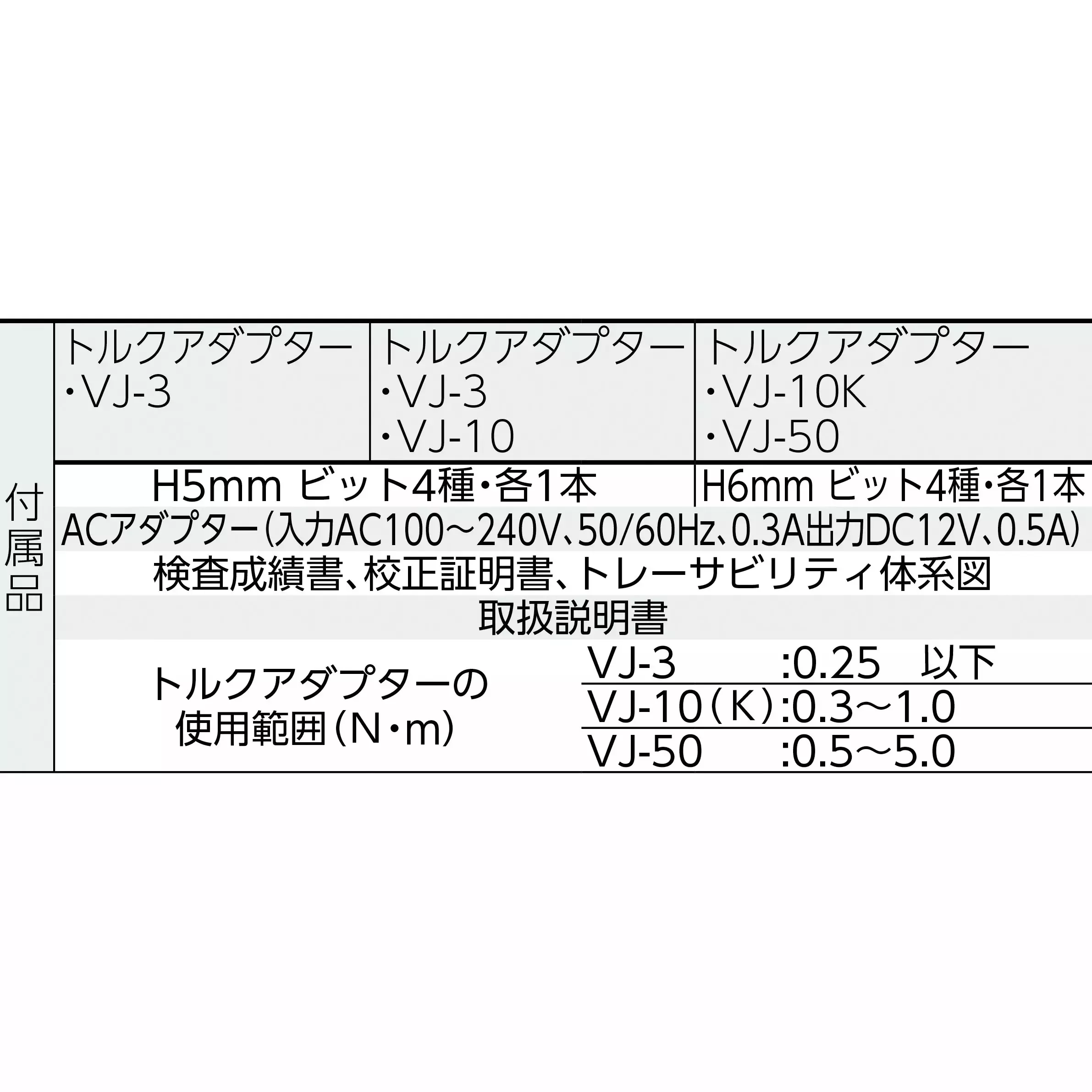

Accessories: Torque Adapter No.VJ-3, No.VJ-10, Measurement Bit No.D73H5 x 50No.D76H5 x 50No.B34H5 x 50No.A16H5 x 50, AC Adapter (Input AC100-240V, 50 / 60Hz, 0.3A Output DC12V, 0.5A), Inspection Report, Calibration Certificate, Traceability System Diagram, Instruction Manual |
Dimension (mm) |
[Socket Mating Part] 20 x 20 / 9.5 x 9.5 |
Dimensions WxDxH (mm) |
160x55x125 |
Square Drive (mm) |
9.5(3/8) |
Battery Life |
Charge More than 300 times (However, It Depends on Usage) |
Applicable Standard |
CE, RoHS |
Recharge Time |
About 3 Hrs |
Data Output |
ASCII Format (Baud Rate 19200 bps) |
Data Memory |
Measured Value 800 Data |
Continuous Operating Time (hrs) |
About 12 |
Automatic Shut Down |
Power Off After Standing for 10 minutes |
Digital Display |
[Digit] 0.10-1000 cN.m |
