Ships within 15 days
View
View
View
View

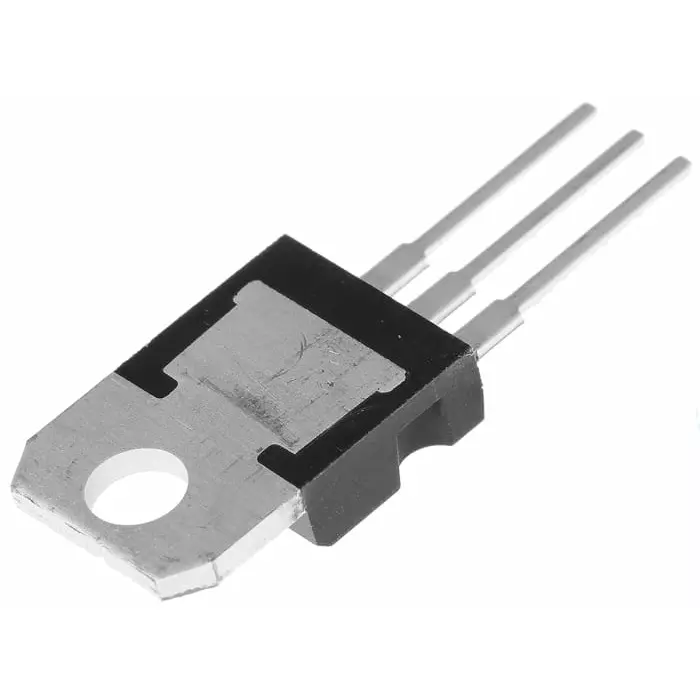

| Model No | TIP147T |
| Type of Product | PNP Darlington Transistor |
| Width | 4.6 mm |
| Height | 9.15 mm |
Model No |
TIP147T |
Type of Product |
PNP Darlington Transistor |
Width |
4.6 mm |
Height |
9.15 mm |
transistor Type |
PNP |
Dimension |
10.4x4.6x9.15 mm |
Mounting Type |
Through Hole |
Country of Origin |
USA |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Number of Elements Per Chip |
1 |
Maximum Emitter Base Voltage |
5 V |
Maximum Collector Base Voltage |
100 V |
Maximum Collector Emitter Saturation Voltage |
3 V |
Length |
10.4 mm |
DC Current Gain |
Minimum: 500 A |
Maximum Continuous Collector Current |
10 A |
Maximum Operating Temperature |
+150°C |
Maximum Collector Emitter Voltage |
100 V |
Transistor Configuration |
Single |
Package Type |
TO-220 |
Maximum Collector Cut-off Current |
1 mA |
Minimum Operating Temperature |
-65°C |
Pin Count |
3 |
