| Weight | Approx. 108g (approx. 65g) |

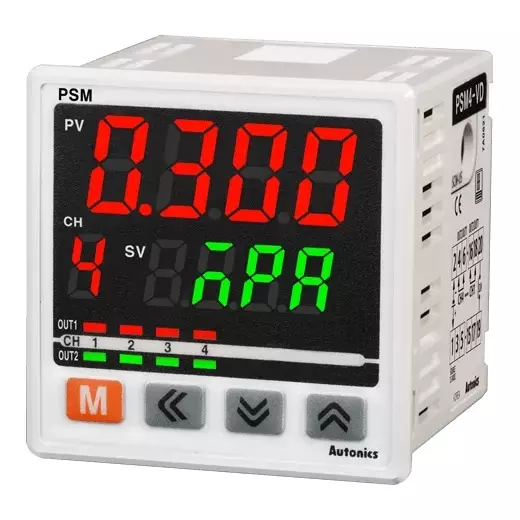

| Model No | PSM4-VD |
| Type of Product | Pressure Sensor |
| Current Consumption | mAx. 100 mA (adds 20 mA for RS485 communication.) |
Weight |
Approx. 108g (approx. 65g) |
Model No |
PSM4-VD |
Type of Product |
Pressure Sensor |
Current Consumption |
mAx. 100 mA (adds 20 mA for RS485 communication.) |
Environment Ambient Temperature |
-10 to 50℃, Storage: -20 to 60℃ |
Environment Ambient Humidity |
30 to 85%RH, Storage: 30 to 85%RH |
Insulation Resistance |
≥ 100 MΩ (500 VDC Megger) |
Display Accuracy |
±0.1% ±2-digit (at 23 ±5℃) |
Country of Origin |
South Korea |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Power Consumption |
Max. 3 W |
Control Output Response Time |
2.5ms, 100ms, 500ms, 1000ms |
Control Output Repeat Error |
±0.1% F.S. ±min. display interval |
Control Output Hysteresis |
Min. display interval |
Power Voltage |
12-24VDC ±10%(ripple P-P: max. 10%) |
Input Method |
1-5VDC |
Connection Output |
Hirose connector 20-pin (HIF3BA-20D-2.54R, flat cable 20-wire, sold separately) terminal |
Vibration |
1.5mm amplitude at frequency of 10 to 50Hzin each X, Y, Z direction for 2 hours |
Display Digit |
PV display part, SV display part: 4-digit, channel display part: 1-digit |
Display Method Output Indicator |
8 (OUT1, OUT2: 4 for each) |
Display Method Display Part |
7-segment LED method ᆞPV display part: red or green ᆞSV display part: green ᆞChannel display part: red |
Connection Input |
Sensor connector (for CNE-P04, sold separately) terminal |
Control Output and Display Temperature |
0 to 50℃: ±0.2% F.S. ±2-digit (based on 25℃), -10 to 0℃: ±0.3% F.S. ±2-digit |
Power for External Sensor |
12-24VDC , 40mA for each channel (max. current of 1-4CH: max. 100mA, max. current of 5-8CH: max. 100mA) |
Accessories |
Bracket |
Control Output Protection Circuits |
Output short over current protection, reverse power polarity protection circuit |
Display Pressure Range |
Depending on pressure type, pressure unit (refer to '▣ Rated Pressure and Max. Display Pressure Range') |
Dielectric Strength |
1,000VAC 50/60Hz for 1 min (between power terminal and case), 500VAC 50/60Hz for 1 min (between power terminal and RS485 terminal) |
Number of Input Channels |
4 EA |
Digital Input |
Digital input (1 point) ᆞContact input-[L]: max. 0.2V ᆞNon-contact input: ON- residual voltage max. 1.0V, OFF- leakage current max. 0.1mA |
