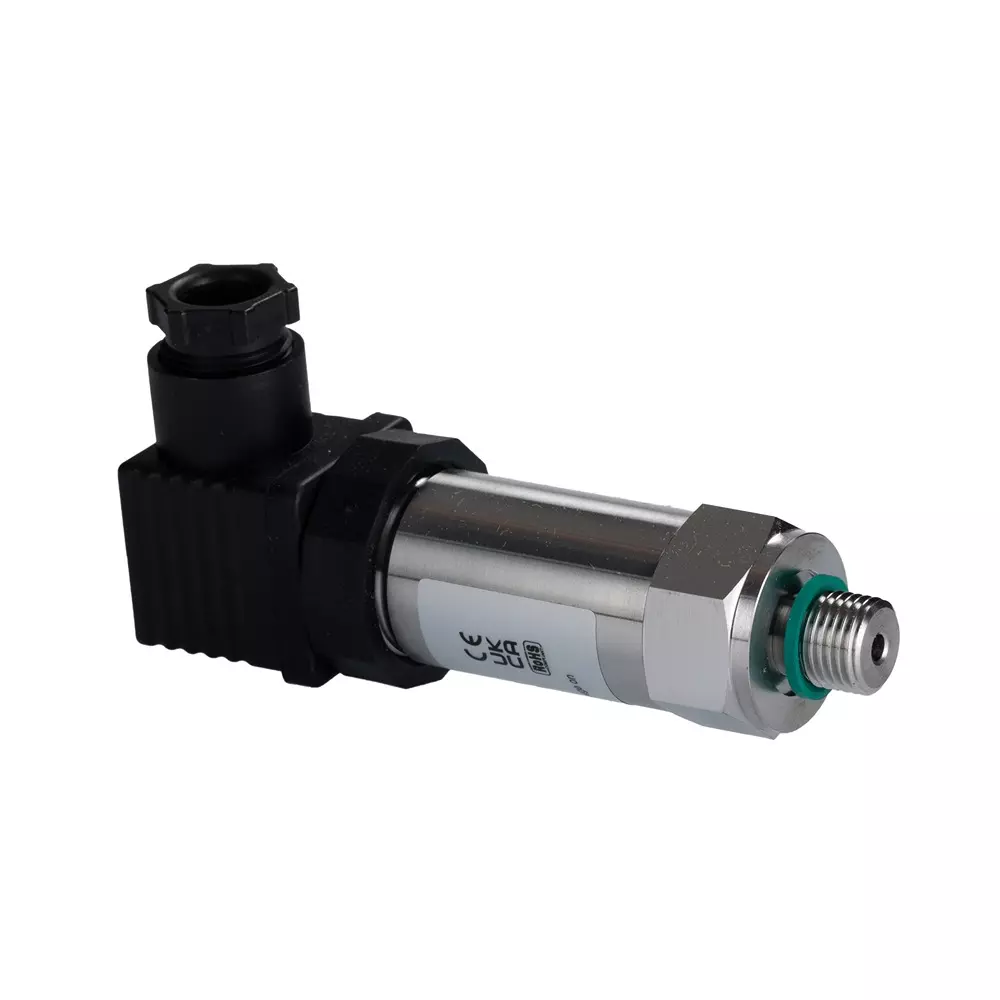

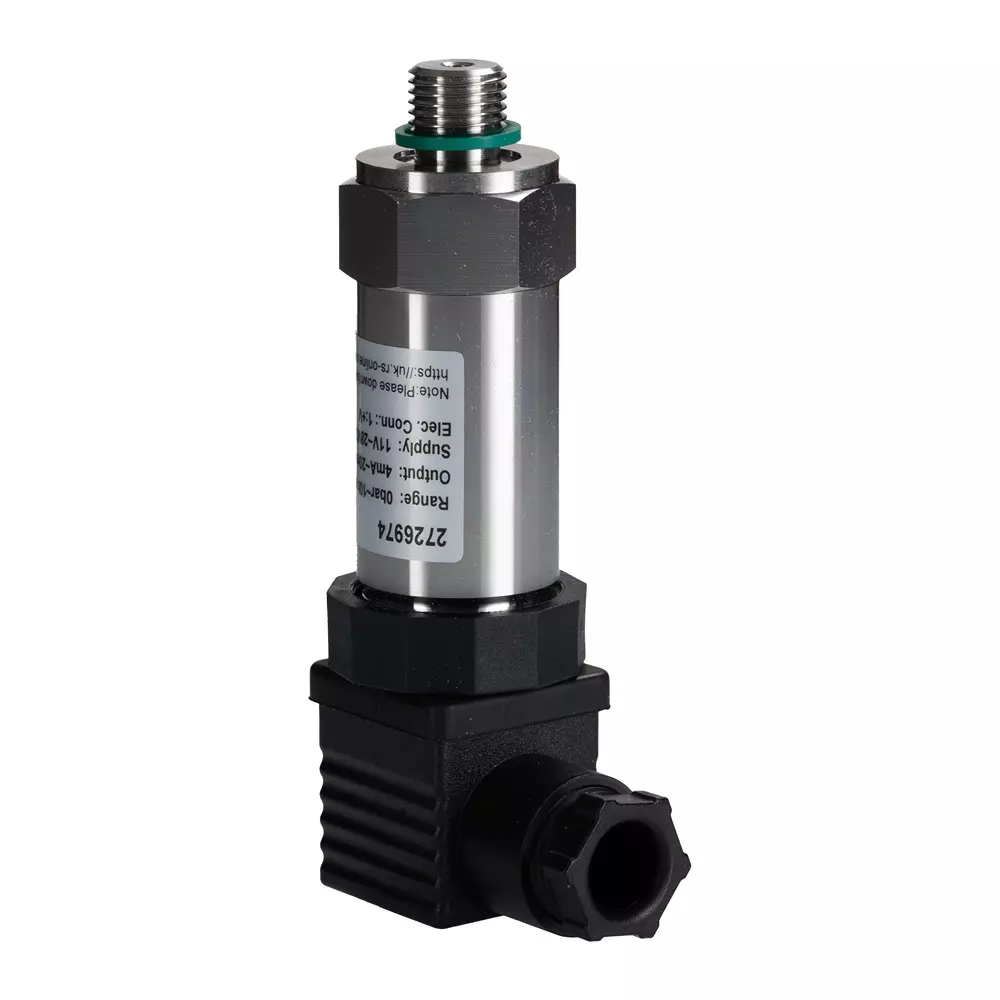

| Type of Product | Pressure Sensor |
| Accuracy | ±0.5% |
| Country of Origin | China |
| Maximum Operating Temperature | +80℃ |
Type of Product |
Pressure Sensor |
Accuracy |
±0.5% |
Country of Origin |
China |
Maximum Operating Temperature |
+80℃ |
Mounting Type |
Threaded |
Minimum Operating Temperature |
-30℃ |
Maximum Pressure Reading |
10 bar |
Supply Voltage |
11 to 28 V DC |
Maximum Current |
23 mA |
Housing Material |
Stainless Steel |
Electrical Connections |
DIN175301-803A |
Process Connection |
G1/4 |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Minimum Pressure Reading |
0 bar |
Pressure Reading Type |
Absolute |
Media Measured |
Air, Water, Mixed Oil, Fluids |
Interface |
4-Pin Connector |
Analogue Outputs |
4 to 20 mA |
