| Model No | M4NN-DA-1N |
| Weight | Approx. 83.7g(approx. 46.7g) |

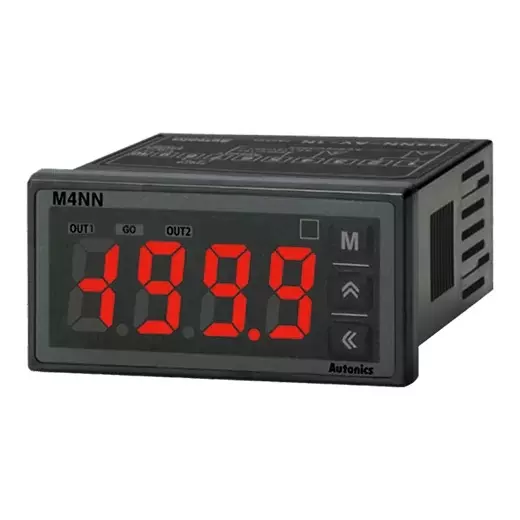

| Type of Product | Compact Digital Panel Meter |
| Character Height | 11 mm |
Model No |
M4NN-DA-1N |
Weight |
Approx. 83.7g(approx. 46.7g) |
Type of Product |
Compact Digital Panel Meter |
Character Height |
11 mm |
Max Display Range |
-1999 to 9999 |
Measurement |
DC current |
Display Method |
4-digit 7-segment LED |
Sampling Cycle |
50ms (resolution 1/12,000) |
Protection Structure |
IP53 (front part, IEC standard) |
Country of Origin |
South Korea |
Display Accuracy |
•23℃±5℃ - ±0.1% F.S. ±2-digit ※For 5A terminal of M4NN-DA, AA Input, ±0.3% F.S. ±3-digit •-10 to 50℃ - ±0.5% F.S. ±3-digit ※For 5A terminal of M4NN-DA, AA Input, ±1% F.S. ±3-digit |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Insulation Type |
Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV) |
A/D Conversion Method |
Practical oversampling using successive approximation ADC |
Display Cycle |
0.1 to 5.0 sec (selectable by 0.1 sec) |
Environment Ambient Temperature |
-10 to 50℃, Storage: -20 to 60℃ |
Input Specifications |
-5-5A, -2-2A, -1-1A, -200-200mA, -100-100mA, -20-20mA, 4-20mA, -10-10mA, -2-2mA |
Power Factor Display |
Power Factor Display |
Power Voltage |
5-24VDC |
Output Main Output(Comparative Value) |
Indicator |
Environment Ambient Humidity |
35 to 85% RH, Storage: 35 to 85% RH |
Max. Allowable Input |
-110 to 110% of the rated measurement input range(when not using minus input: -10 to 110%) |
