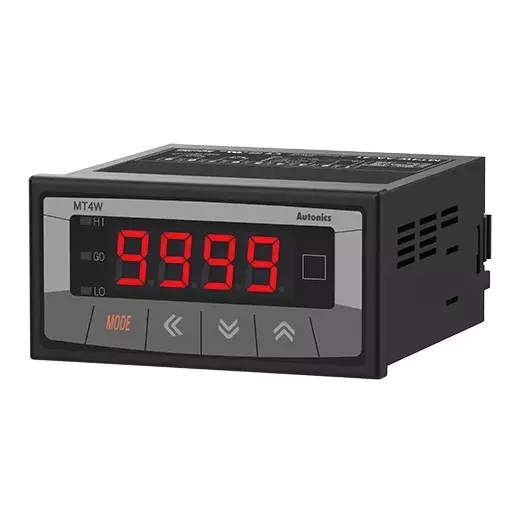

| Model No | MT4W-DV-42 |
| Type of Product | Compact Digital Panel Meter |
| Character Height | 14.2 mm |
| Max Display Range | -1999 to 9999 |
Model No |
MT4W-DV-42 |
Type of Product |
Compact Digital Panel Meter |
Character Height |
14.2 mm |
Max Display Range |
-1999 to 9999 |
Measurement |
DC voltage |
Display Method |
4-digit 7-segment LED |
Sampling Cycle |
50ms |
Protection Structure |
IP56 (front part, IEC standard) |
Country of Origin |
South Korea |
Display Accuracy |
• 23℃±5℃ - ± 0.1 % F.S. rdg ± 2 digit ± 0.3 % F.S. rdg ± 3 digit max. only for 5A terminal. • -10℃ to 50℃ -± 0.5 % F.S. rdg ± 3 digit |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Insulation Type |
Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV) |
A/D Conversion Method |
ΣΔ (Sigma Delta) ADC |
Environment Ambient Temperature |
-10 to 50℃, Storage: -20 to 60℃ |
Input Specifications |
0-500V, 0-100V, 0-50V, 0-10V, 0-5V, 0-1V, 0-250mV, 0-50mV |
Power Voltage |
100-240VAC~ 50/60Hz |
Output Main Output(Comparative Value) |
NPN open collector (HI, GO, LO) |
Environment Ambient Humidity |
35 to 85% RH, Storage: 35 to 85% RH |
Unit Weight (Kg/g) |
≈ 211 g (≈ 326 g) |
Hold Function |
Includes (external hold function) |
Output Sub Output(Display Value) |
BCD Dynamic |
