| Model No | M4N-DI-1X |
| Weight | Approx. 44g |

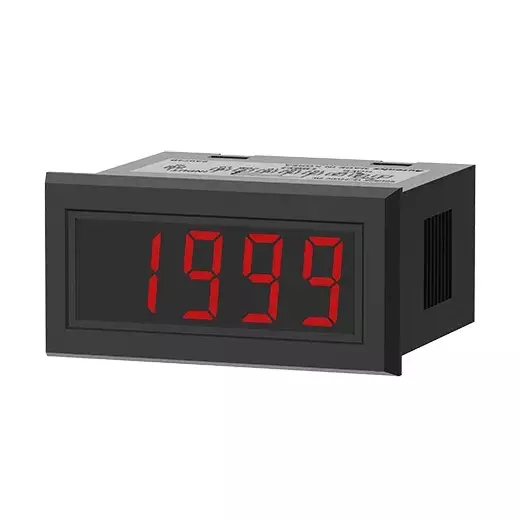

| Type of Product | Compact Digital Panel Meter |
| Character Height | 10 mm |
Model No |
M4N-DI-1X |
Weight |
Approx. 44g |
Type of Product |
Compact Digital Panel Meter |
Character Height |
10 mm |
Max Display Range |
0 to 1999 |
Measurement |
Digital scaling |
Display Method |
3½-digit 7-segment LED |
Sampling Cycle |
300ms |
Country of Origin |
South Korea |
Display Accuracy |
F.S. 0.2% rdg ±1-digit |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Environment Ambient Temperature |
-10 to 50℃, Storage: -20 to 60℃ |
Input Specifications |
DC4-20mA(1-5VDC ) |
Power Voltage |
12-24VDC |
Output Main Output(Comparative Value) |
Indicator |
Environment Ambient Humidity |
35 to 85% RH, Storage: 35 to 85% RH |
Max. Allowable Input |
150% of measurement input range |
