| Model No | MP5Y-25 |
| Weight | Approx. 230g (approx. 140g) |

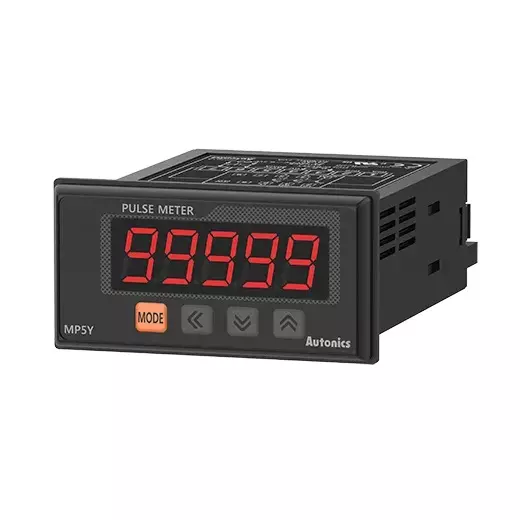

| Type of Product | High Performance Digital Pulse Meter |
| Character Height | 14 mm |
Model No |
MP5Y-25 |
Weight |
Approx. 230g (approx. 140g) |
Type of Product |
High Performance Digital Pulse Meter |
Character Height |
14 mm |
Max Display Range |
-19999 to 99999 |
Measurement |
16 operation modes: Frequency, Revolutions, Speed, Cycle, Time, Ratio, Density, Error, Length measurement, Interval, Accumulation, Addition/Subtraction, etc. |
Display Method |
5-digit 7-segment LED |
Protection Structure |
IP54 (front part, IEC standard) |
Country of Origin |
South Korea |
Input Method |
Voltage input(PNP), No-voltage input(NPN) |
Measurement accuracy |
·Operation mode F1, F2, F7, F8, F9, F10 : F.S.±0.05%rdg±1-digit ·Operation mode F3, F4, F5, F6 : F.S.±0.01%rdg±1-digit |
Measurement Range |
0.0005Hz to 50 kHz, 0.01 to max. of each time range, 0 to 99999, -19999 to 99999 |
Input Frequency |
·Solid state input 1: max. 50 kHz (pulse width: min. 10㎲) ·Solid state input 2: max. 5 kHz (pulse width: min. 100㎲) ※For F7, F8, F9, F10 operation mode, max. 1 kHz (pulse width: min. 500㎲) ·Contact input: max. 45Hz (pulse width: min. 11ms) |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Environment Ambient Temperature |
-10 to 50℃, Storage: -20 to 60℃ |
Power Voltage |
24VAC~ 50/60Hz, 24-48VDC |
Environment Ambient Humidity |
35 to 85% RH, Storage: 35 to 85% RH |
External Power Supply |
Max. 12VDC ±10% 80mA |
Prescale Function |
Direct input method (0.0001×10-9 to 9.9999×109) |
Output Sub Output(Display Value) |
RS485 co mmunication |
