Ships within 19 days
Model No
View
View
View
View

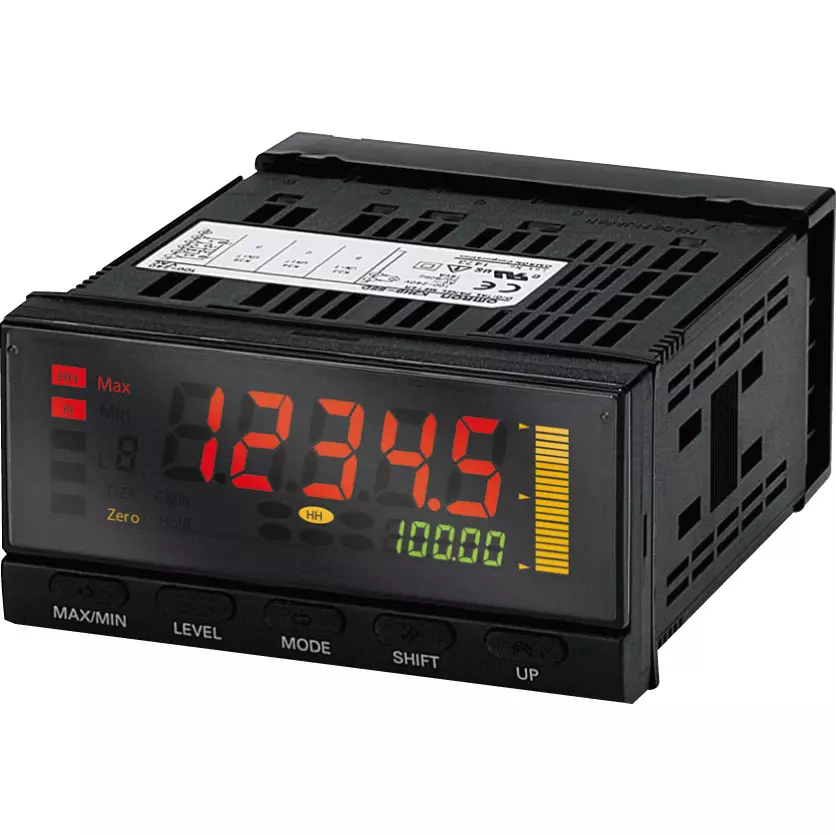

| Model No | K3HB-VLC-CPEC11-AC/DC24 |
| Type of Product | Load cell mV meter |
| Display Type | Negative Type LCD (Backlight LED) Display |
| Operation Ambient Temperature | -10°C to +55°C (With No Icing or Condensation) |
Model No |
K3HB-VLC-CPEC11-AC/DC24 |
Type of Product |
Load cell mV meter |
Display Type |
Negative Type LCD (Backlight LED) Display |
Operation Ambient Temperature |
-10°C to +55°C (With No Icing or Condensation) |
Function |
Scaling Function, Measurement Operation Selection, Averaging Processing, Previous Averaging Comparison, Forced Zero, Zero Limit, Output Hysteresis, Output Off Delay, Output Test, Teaching, Display Value Selection, Display Color Switching, Key Protection, Bank Switching, Display Refresh Cycle, Max / Min Hold, Reset |
Sampling Cycle |
20 ms |
Input Type |
Load Cell |
Display Range |
-19999~99999 |
Country of Origin |
Japan |
Insulation Resistance |
20 mΩ or more (at 500 VDC Megger) Between All External Terminals and Case |
Input Method |
Load Cell/DC Voltage |
Included Components |
Waterproof Packing, 2 Fixtures, Terminal Cover, Unit Seal, Instruction Manual |
Monotaro ID |
46660722 |
Import Country |
Direct Import from Japan |
No. of Digits |
5 Digits (-19999 to 99999) |
Power Consumption |
11 VA/7 W or less (at Maximum Load) |
Power Supply Voltage |
AC/DC 24 |
Display Digit Number |
5-Digit |
Type of Sign |
Panel mounting |
Protection Class |
Front: NEMA4X Indoor Compliant (Equivalent to IP66), Rear Case: IP20, Terminal Part: IP00 + Finger Protection (VDE0106/100) |
Protective Function |
Memory: EEPROM (Non-volatile Memory) (100,000 Writes) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Character Height (mm) |
PV: 14.2 mm (Green/Red Switching), SV: 4.9 mm (Green) |
Mass (g) |
About 300 g |
Input Power |
DC24 V, AC24 V 50/60 Hz |
Altitude (m) |
2000 m or less |
