Ships within 19 days
Model No
View
View
View
View

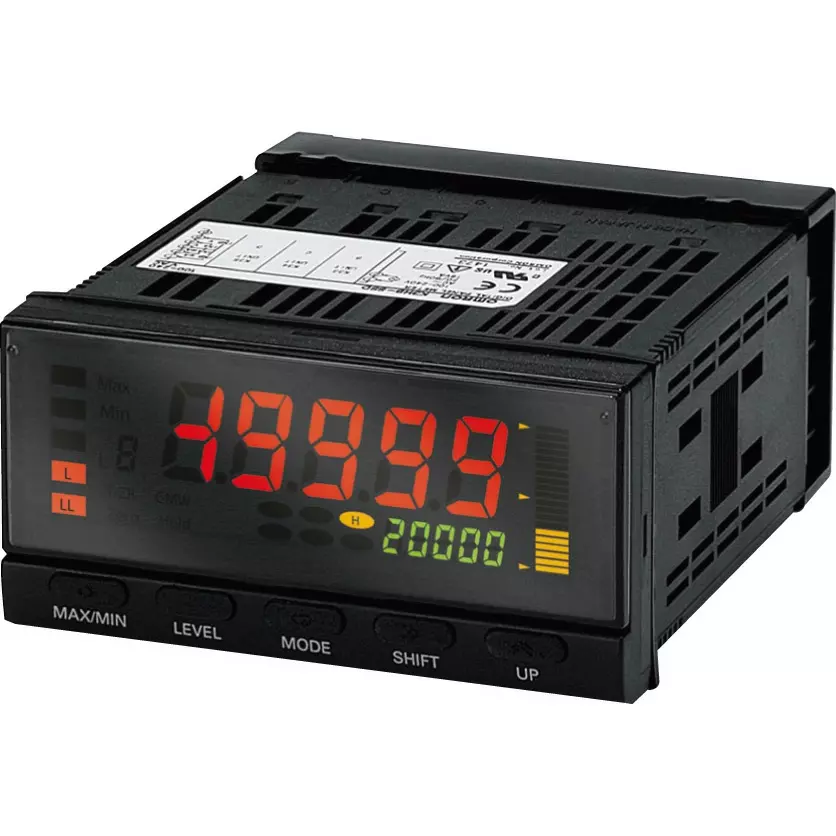

| Model No | K3HB-XVA-FLK3AT11 AC100-240 |
| Type | (Event Input Type) 5-Point Input: Non-Voltage/Npn Open Collector (Timing/S-Tmr/Hold/Zero/Reset) Terminal Block Type |
| Output | Output Type (1): Transistor Output (Npn Open Collector (Hh, H, Pass, L, Ll)), Output Type (2): Co mmunication (Rs-485) |
| Type of Product | Voltage/Current Panel Meter |
Model No |
K3HB-XVA-FLK3AT11 AC100-240 |
Type |
(Event Input Type) 5-Point Input: Non-Voltage/Npn Open Collector (Timing/S-Tmr/Hold/Zero/Reset) Terminal Block Type |
Output |
Output Type (1): Transistor Output (Npn Open Collector (Hh, H, Pass, L, Ll)), Output Type (2): Co mmunication (Rs-485) |
Type of Product |
Voltage/Current Panel Meter |
Display Type |
Negative type LCD (backlight LED) display |
Input Type |
AC Voltage |
Country of Origin |
Japan |
Included Components |
Waterproof packing, 2 fixtures, terminal cover, unit seal, instruction manual |
Monotaro ID |
39076931 |
Import Country |
Direct Import from Japan |
No. of Digits |
5 digits (-19999 to 99999) |
Power Consumption |
Maximum load: 18VA or less |
Type of Sign |
Panel mounting |
Protection Class |
Front: NEMA4X indoor compliant (equivalent to IP66), Rear case: IP20, Terminal: IP00+ finger protection (VDE0106/100) |
Applicable Standard |
UL61010-1, CSA C22.2 No.61010-1-04, EN61010-1 (IEC61010-1), Pollution Degree 2/Overvoltage Category II, EN61326-1 |
Series |
K3HB-X Series |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Mass (g) |
Approx. 300 (main unit only) |
Input Power |
AC100 to 240 50/60 Hz |
Mass of Main Unit (g) |
About 300 |
Withstand Voltage |
AC2300 (between all external terminals and case) |
Category |
Programmable Digital Panel Meter |
Power Supply Voltage (V) |
AC100-240 |
