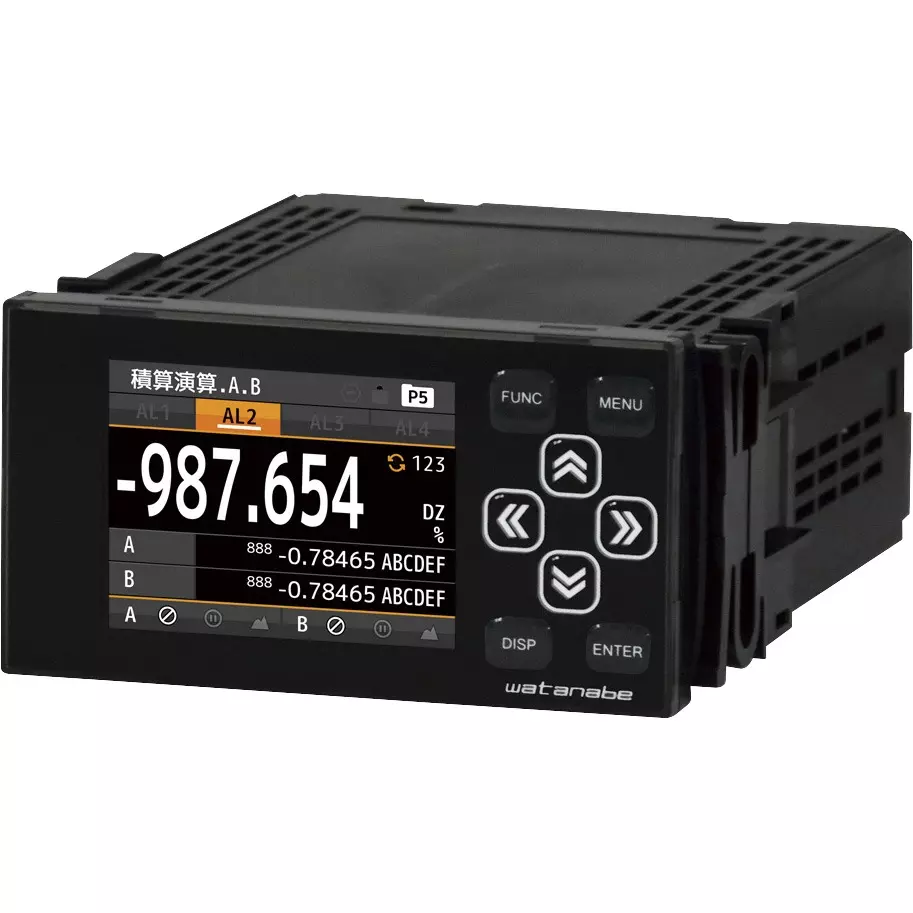

| Model No | WPMZ-3-1BX-4R-TE0 |
| Display | 2.4 inch TFT LCD display |
| Type of Product | Graphical Digital Panel Meter |
| Input Type | Voltage current |
Model No |
WPMZ-3-1BX-4R-TE0 |
Display |
2.4 inch TFT LCD display |
Type of Product |
Graphical Digital Panel Meter |
Input Type |
Voltage current |
Display Range |
-99999 to 99999 |
Country of Origin |
Japan |
Monotaro ID |
51991888 |
Import Country |
Direct Import from Japan |
Power Supply Voltage |
AC 100 to 240 V ±10% |
Type of Sign |
Board Mounting |
Protection Class |
IP66 (front) |
Applicable Standard |
EN61326-1 (EMS: Industrial installation / EMI: Class A), * Applicable when wiring length is 30m or less, EN61010-1, EN50581 |
Case Material |
Polycarbonate |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 350 |
Altitude (m) |
2000 or less |
Power for Sensor |
DC 12 V 100 mA / DC 24 V 50 mA |
Channel |
1ch or 2ch |
Analog Output |
None |
Specifications |
[Zero display] Leading zero suppress, [Decimal point] Can be set arbitrarily, [Measurement category] 2 |
Display Part |
[At 1ch input] Ach input measurement result, [2ch input] Ach input measurement result-Bch input measurement result, either Ach or Bch input measurement result-Ach or Bch input measurement result and calculation result |
Case Color |
Black UL94V-0 |
Digit Number of Display |
5-digit |
Outer Dimensions, Width W x Height H x Depth D (mm) |
96x145x52 |
Insulation Resistance (MOhm) |
[Between terminals] 100 or more (DC 500 V) |
Dimensions (Width x Length) mm |
[Panel] 52 x 96 |
