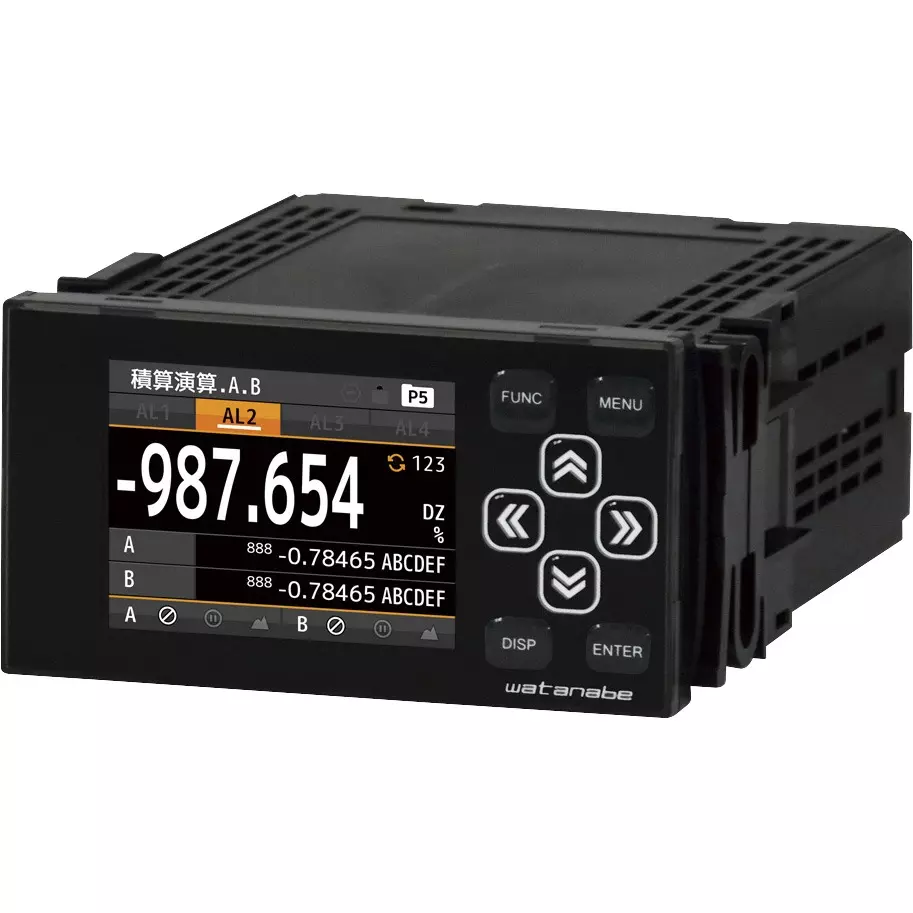

| Model No | WPMZ-1-12B-3F-XE0 |
| Type of Product | Graphical Digital Panel Meter |
| Display Type | TFT LCD display |
| Input Type | Voltage Current |
Model No |
WPMZ-1-12B-3F-XE0 |
Type of Product |
Graphical Digital Panel Meter |
Display Type |
TFT LCD display |
Input Type |
Voltage Current |
Display Range |
-99999 to 99999 |
Country of Origin |
Japan |
Insulation Resistance |
[Between Terminals] 100 MΩ or more (DC 500 V) |
Monotaro ID |
52003316 |
Import Country |
Direct Import from Japan |
Power Supply Voltage |
AC 100-240 V ±10% |
Type of Sign |
Board Mounting |
Protection Class |
IP66 (Front) |
Applicable Standard |
EN61326-1 (EMS: Industrial installation / EMI: Class A), Applicable when the wiring length is 30m or less, EN61010-1, EN50581 |
Case Material |
Polycarbonate |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 350 |
Altitude (m) |
2000 or less |
Power for Sensor |
DC 12 V 100 mA / DC 24 V 50 mA |
Panel Dimensions |
52x96 mm |
Channel |
1 CH or 2 CH |
Analog Output |
None |
Specifications |
[Zero display] Leading zero suppress, [Decimal point] Can be set arbitrarily, [Measurement category] 2 |
Display Size |
61 mm (2.4 Inch) |
Display Part |
[At 1 CH input] Ach input measurement result, [2 CH input] Ach input measurement result, Bch input measurement result Any of Ach and Bch input measurement results, Ach or Bch input measurement result and calculation result |
Case Color |
Black UL94V-0 |
Digit Number of Display |
5-Digit |
Outer Dimensions, Width W x Height H x Depth D (mm) |
96x145x52 |
