Ships within 25 days
View
View
View
View
| Type | DC fan |
| Type of Product | DC Propeller Fan |
| Features | Standard |
| Shape | Square |
Type |
DC fan |
Type of Product |
DC Propeller Fan |
Features |
Standard |
Shape |
Square |
Model No |
T-MD1225-24-G |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Oriental Motor Co., Ltd. |
Thickness (mm) |
25 |
Import Country |
Direct Import from Japan |
Monotaro ID |
37727952 |
Connection Type |
Lead |
Frame Material |
Aluminum die casting |
Mounting Hole Spacing, Square (mm) |
119x119 |
Additional Functions |
None |
Current (A) (50/60Hz) |
0.26 |
Maximum Static Pressure (Pa) |
43 |
Maximum Airflow |
2.5 m³/min |
Sound Pressure Level (dB) |
45 |
Speed Type |
Standard speed |
Material (Fan Blade) |
Polycarbonate (flame retardant grade V-0) |
Input Voltage (V) |
DC24 |
Fan |
MD1225-24 |
Set Contents |

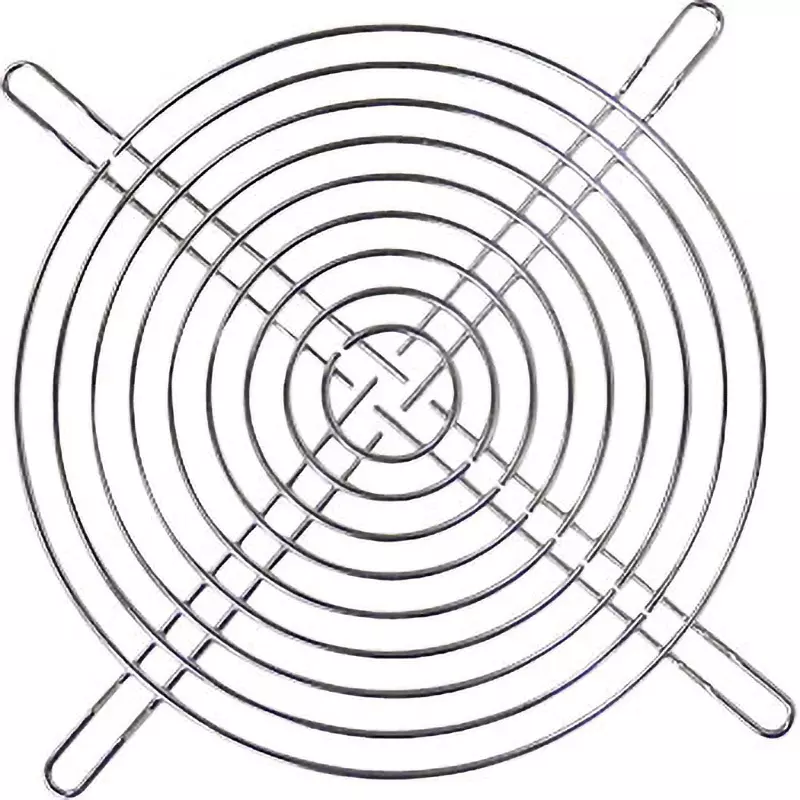

Fan, finger guard, mounting screw (M4X40mm), instruction manual |
Rated Rotation Speed (min⁻¹ [rpm]) |
3100 |
Protection |
Built-in burnout prevention circuit |
