| Application | Industrial Automation |

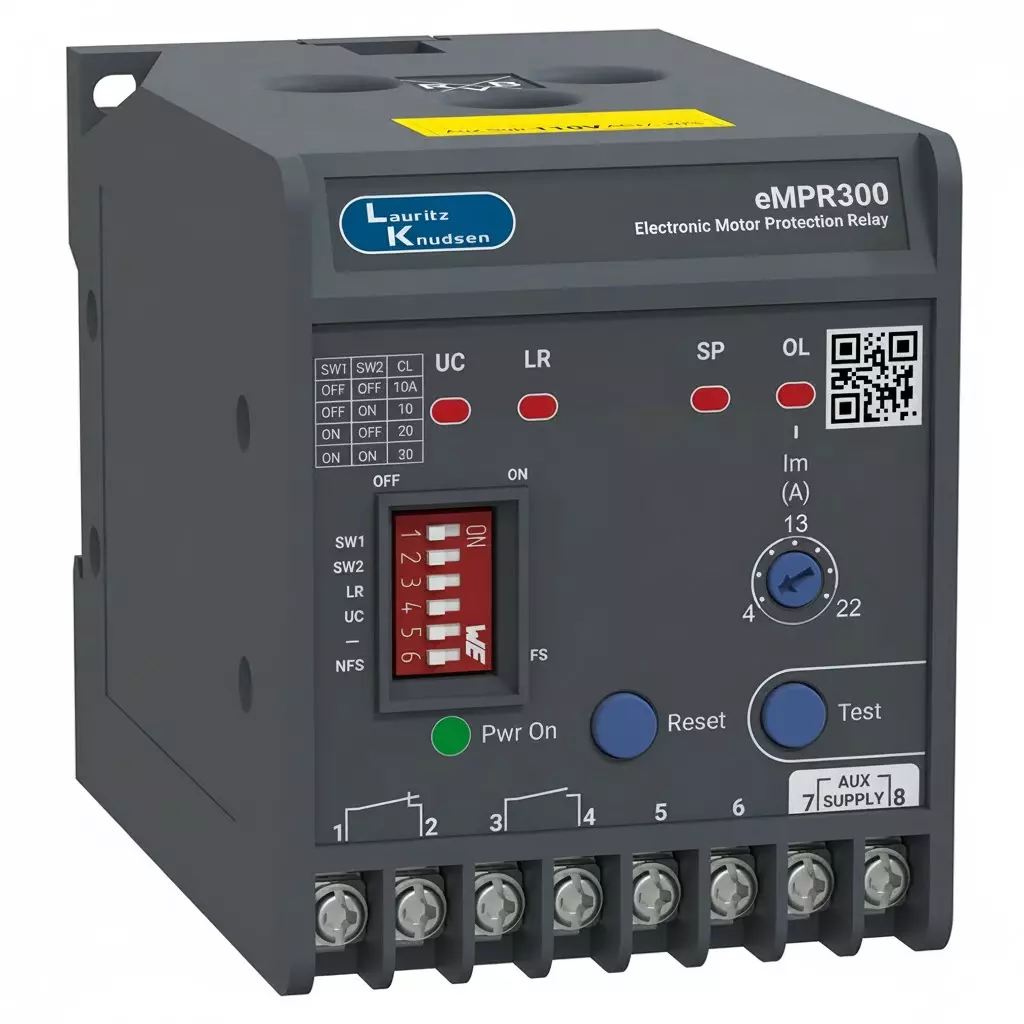

| Type of Product | Electronic Motor Protection Relay |
| Model No | EMPR300XABO |
| Mounting Type | DIN Rail Mounting |
Application |
Industrial Automation |
Type of Product |
Electronic Motor Protection Relay |
Model No |
EMPR300XABO |
Mounting Type |
DIN Rail Mounting |
Type |
With Built-In Earth Fault Protection |
Country of Origin |
India |
Item Code |
49, 51 lR, 64, 37, 46 |
Range |
Thermal Overload: 4-22 A |
Mode |
Site Selectable - Fail Safe/ Non Fail Safe Mode |
Color |
Dark Grey |
Protection |
Overload, Single Phasing, Phase Unbalance, Under Current, Locked Rotor, Earth Fault, Phase Sequence Reversal |
Trip Class |
10A, 10, 20, 30 As Per IEC 60947-4-1 |
Name of Manufacturer/Packer/Importer |
Explore Technologies |
Auxiliary Supply Voltage |
110 V AC |
Phase Sequence |
RYB/RBY |
Indicator Type |
Trip Indication |
Material |
Plastic |
