| Operating Temperature | 0°C-55°C |
| Frequency | 50-60 Hz |

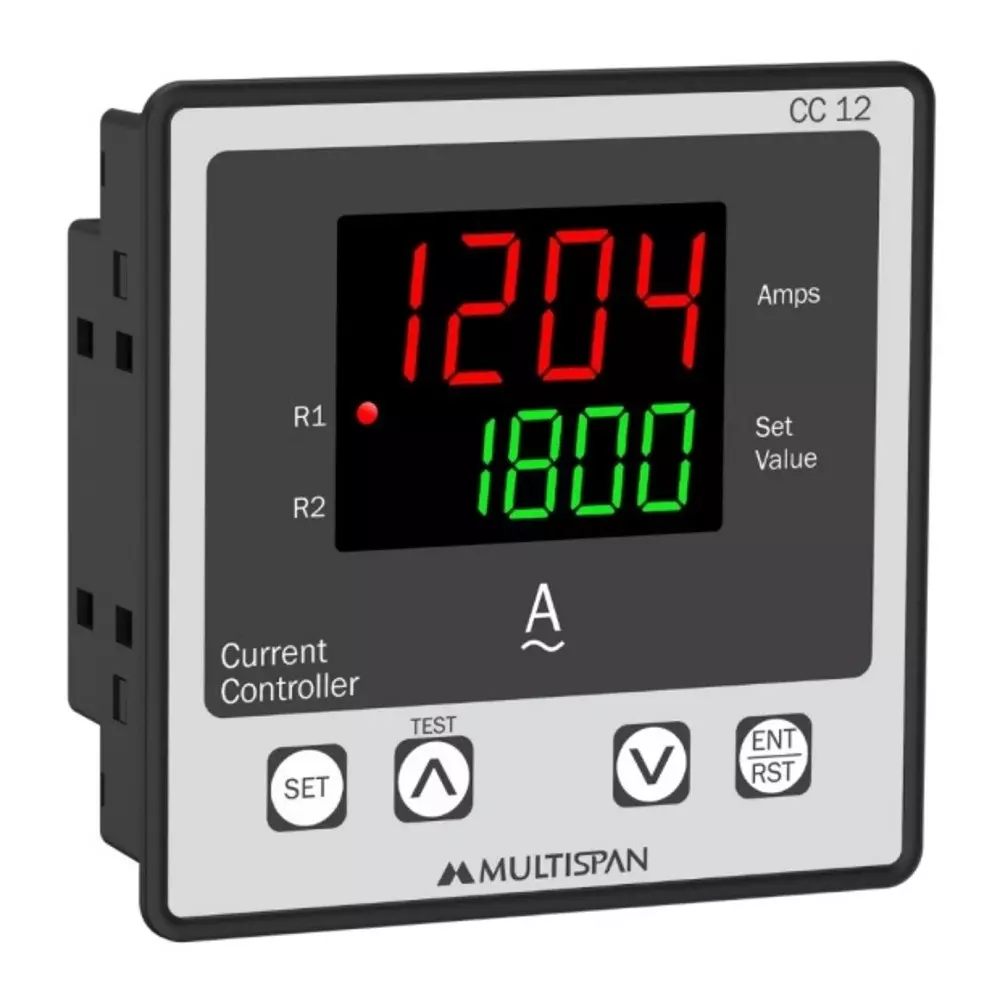

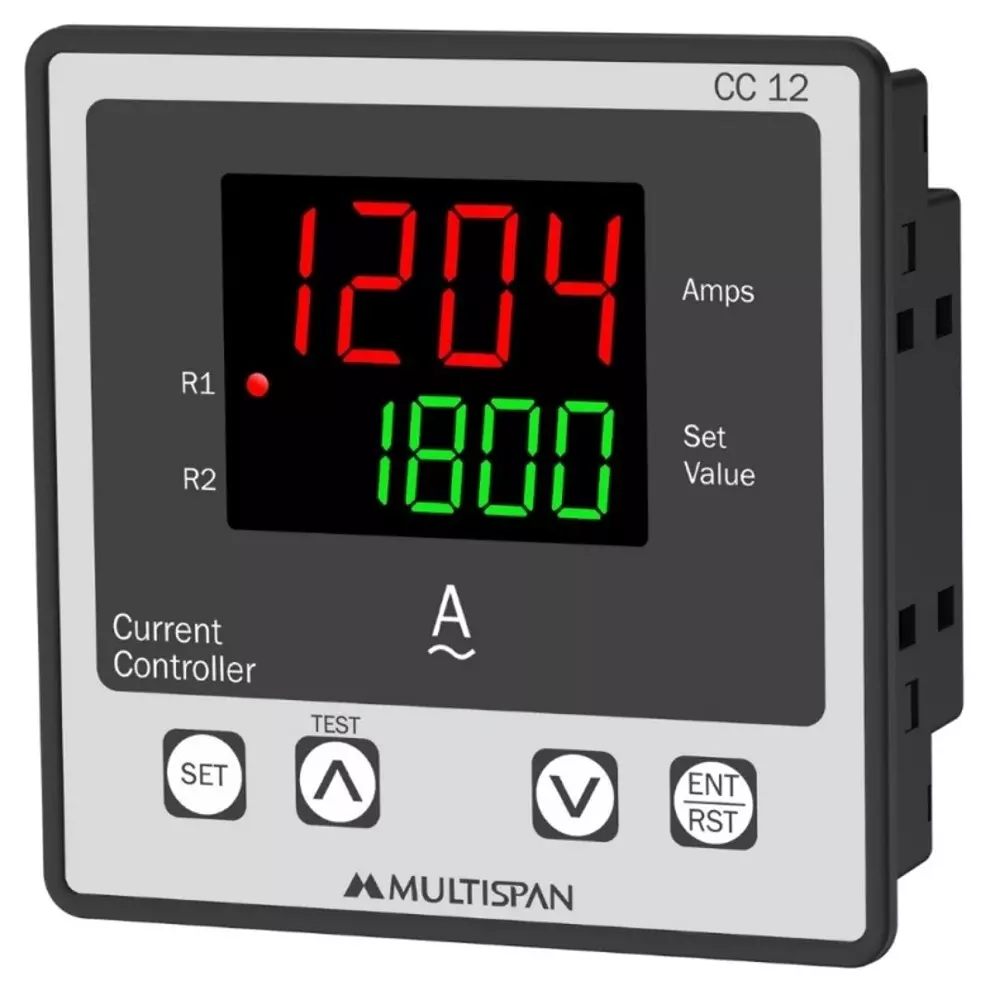

| Type of Product | Digital Current Protection Relay |
| Relay Type | 1-C/O (NO-C-NC) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Operating Temperature |
0°C-55°C |
Frequency |
50-60 Hz |
Type of Product |
Digital Current Protection Relay |
Relay Type |
1-C/O (NO-C-NC) |
Model No |
CC-12 |
Mounting Type |
Panel Mount |
Supply Voltage |
100-270 V AC |
Size |
96x96x43 mm (HxWxD) |
Country of Origin |
India |
Power Consumption (VA) |
4 VA @230 V AC (Max) |
Name of Manufacturer/Packer/Importer |
Dhruv Enterprise |
Display |
Upper: 4-Digit 7-Segment White LED Display, Lower: 4-Digit 7-Segment Green LED Display |
Relay Rating |
10 A, 230 V AC/28 V DC |
Panel Cutout |
92x92 mm (HxW) |
Secondary Current |
0.5-5 A AC |
Display Size |
Upper: 1.8 cm (0.70 inch), Lower: 1.27 cm (0.50 inch) |
Relative Humidity |
Upto 95% RH Non-Condensing |
Resolution |
0.1 A, 1 A |
