| Type of Product | Timing Pulley |
| Model No | T10-15-16A |
| Material | Steel |
| Country of Origin | JAPAN |
Type of Product |
Timing Pulley |
Model No |
T10-15-16A |
Material |
Steel |
Country of Origin |
JAPAN |
No. of Teeth |
16 |

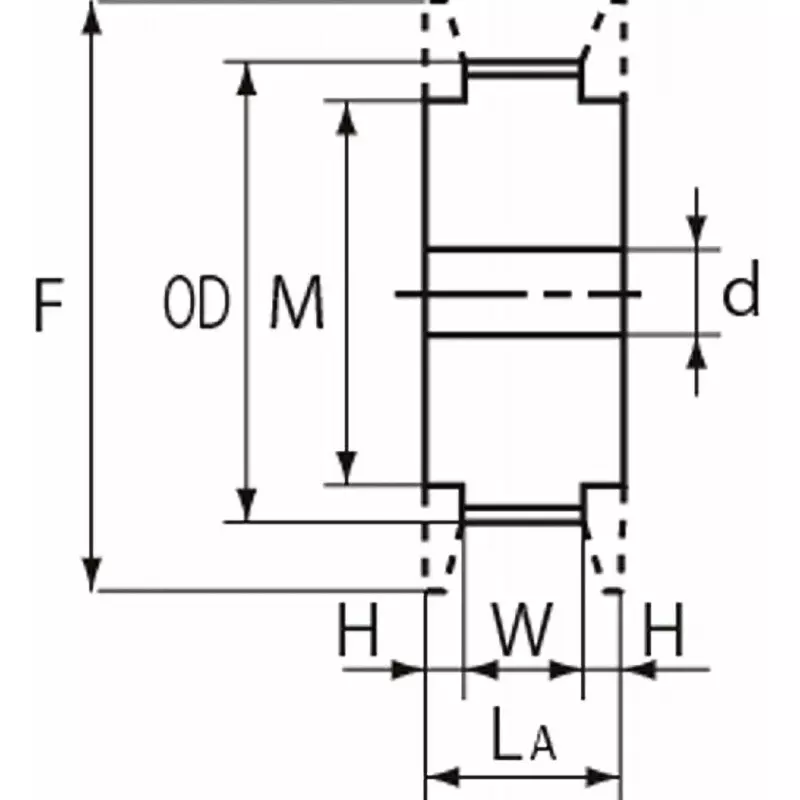

Dimension LA (mm) |
22 |
Monotaro ID |
47943332 |
Pitch Diameter (Φmm) |
50.93 |
Shaft Hole Diameter d (mm) |
10-24 mm |
Suitable Flange |
F-165741 |
Dimension H |
2.5 mm |
Shape |
A Type |
Dimension W |
17 mm |
Mass |
0.27 Kg |
Maximum shaft hole diameter d (Φmm) |
24 |
Min. Shaft Hole Diameter d |
10 mm |

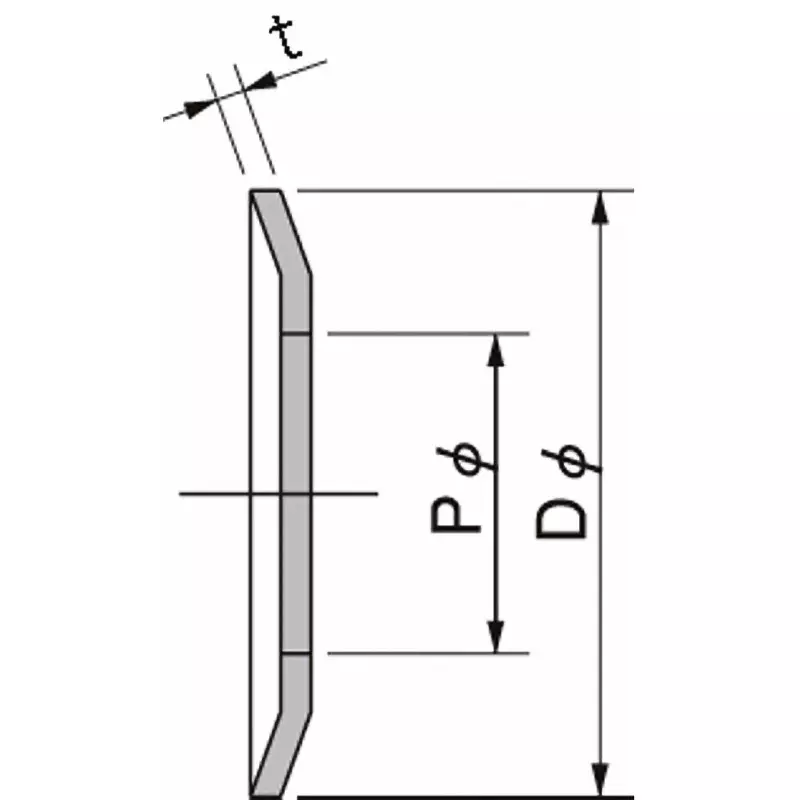

Applicable flange outer diameter D (mm) |
57 |
Applicable flange thickness t (mm) |
1.6 |
Tooth Type |
T10 Type |
Included Components |
Flange |
Cell Spacing (mm) |
10 mm |
Applicable flange inner diameter P (mm) |
41 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
