Ships within 25 days
View
View
View
View
| Type of Product | Timing Belt Pulley |
| Model No | 10L050A |
| Material | Steel |
| Country of Origin | JAPAN |
Type of Product |
Timing Belt Pulley |
Model No |
10L050A |
Material |
Steel |
Country of Origin |
JAPAN |
No. of Teeth |
10 |

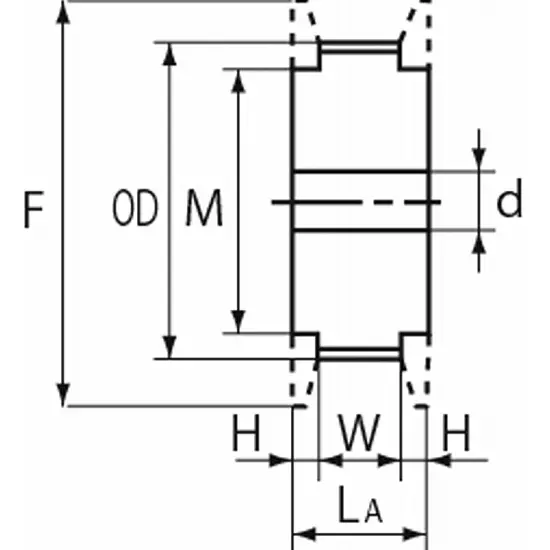

Dimension LA (mm) |
19 |
Monotaro ID |
47863286 |
Pitch Diameter (Φmm) |
30.32 |
Suitable Flange |
F-103522 |
Dimension H |
2.5 mm |
Shape |
A Type |
Dimension W |
14 mm |
Mass |
0.08 Kg |
Nominal Width |
50 (12.7 mm) |
Maximum shaft hole diameter d (Φmm) |
14 |
Min. Shaft Hole Diameter d |
6 mm |

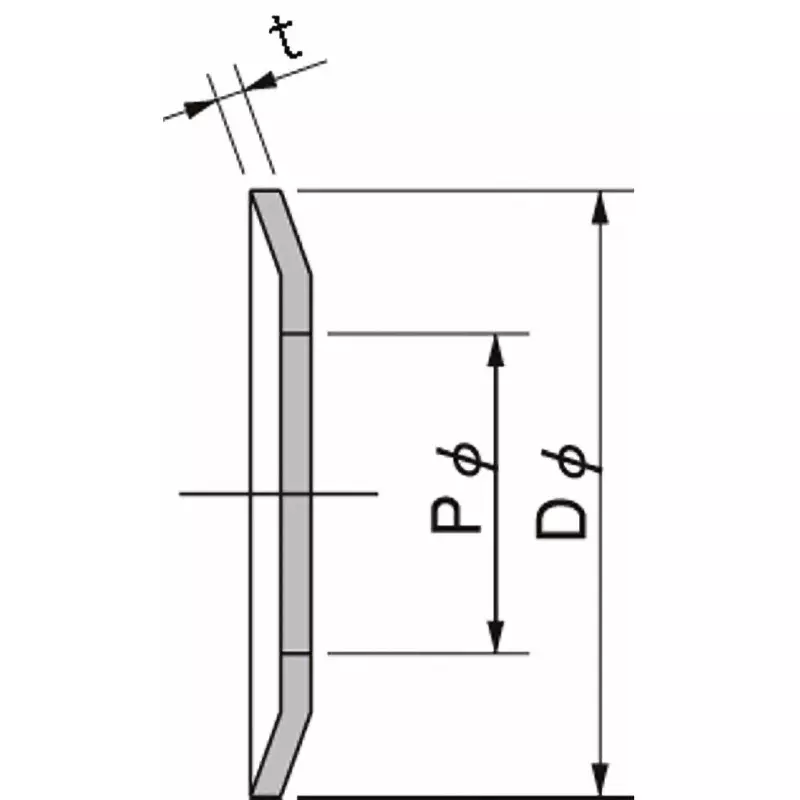

Applicable flange outer diameter D (mm) |
35 |
Applicable flange thickness t (mm) |
1 |
Tooth Type |
L Type |
Included Components |
Flange |
Cell Spacing (mm) |
9.525 mm |
Applicable flange inner diameter P (mm) |
22 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
