| Type of Product | Timing Belt Pulley |
| Model No | 44L075B |
| Material | Steel |
| Country of Origin | JAPAN |
Type of Product |
Timing Belt Pulley |
Model No |
44L075B |
Material |
Steel |
Country of Origin |
JAPAN |
No. of Teeth |
44 |

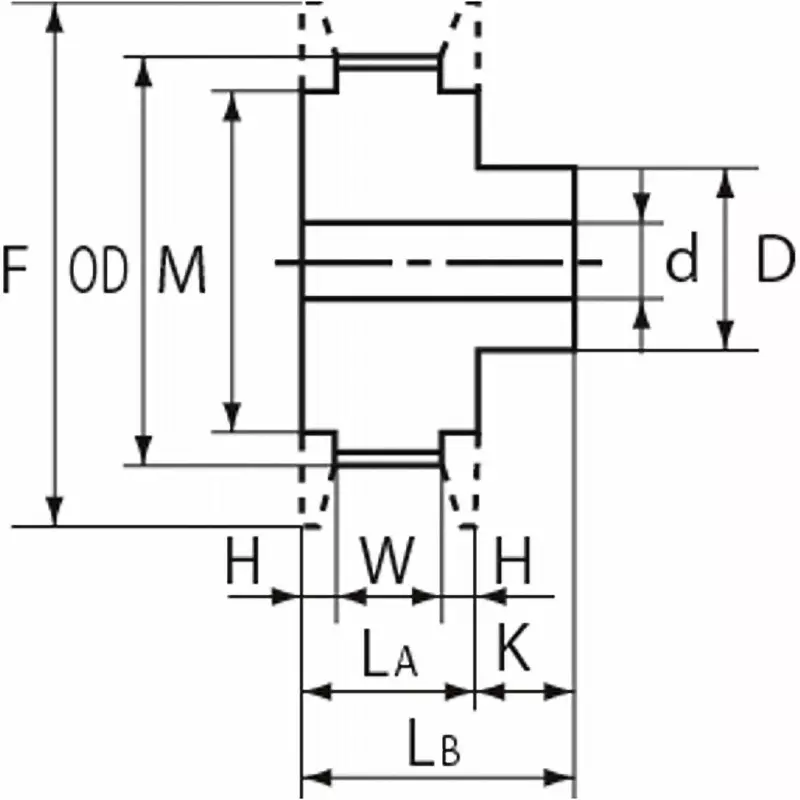

Dimension LB (mm) |
46 |
Dimension LA (mm) |
26 |
Monotaro ID |
47901567 |
Pitch Diameter (Φmm) |
133.4 |
Dimension K |
20 mm |
Suitable Flange |
F-16138125 |
Dimension H |
2.5 mm |
Shape |
B Type |
Dimension W |
21 mm |
Dimension d |
65 mm |
Mass |
3.58 Kg |
Nominal Width |
75 (19.0 mm) |
Maximum shaft hole diameter d (Φmm) |
38 |
Min. Shaft Hole Diameter d |
16 mm |
Tooth Type |
L Type |
Included Components |
Flange |
Cell Spacing (mm) |
9.525 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
