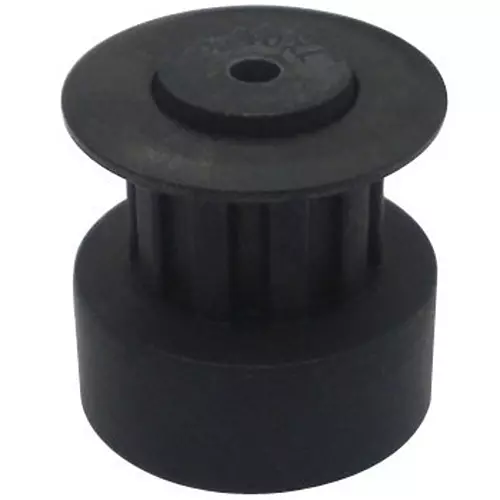

| Type of Product | Timing Pulley |
| Model No | P14-XL-037C |
| Material | Sintered Alloy |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Pulley |
Model No |
P14-XL-037C |
Material |
Sintered Alloy |
Country of Origin |
Japan |
No. of Teeth |
14 |

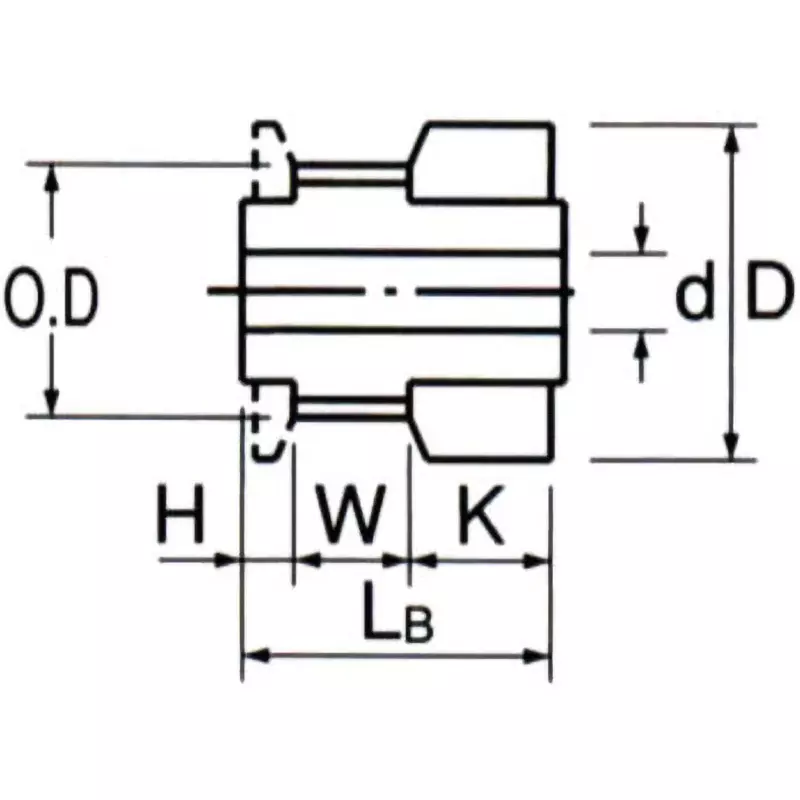

Dimension LB (mm) |
23 |
Type |
XL037 C Type |
Monotaro ID |
35267714 |
Pitch Diameter (Φmm) |
22.64 |
Dimension K |
10 mm |
Shaft Hole Diameter d (mm) |
6-14 mm |
Dimension D (Φmm) |
28 mm |
Suitable Flange |
F-102818 |
Suitable Belt Width (mm) |
9.5 |
Compatible Belt |
XL |

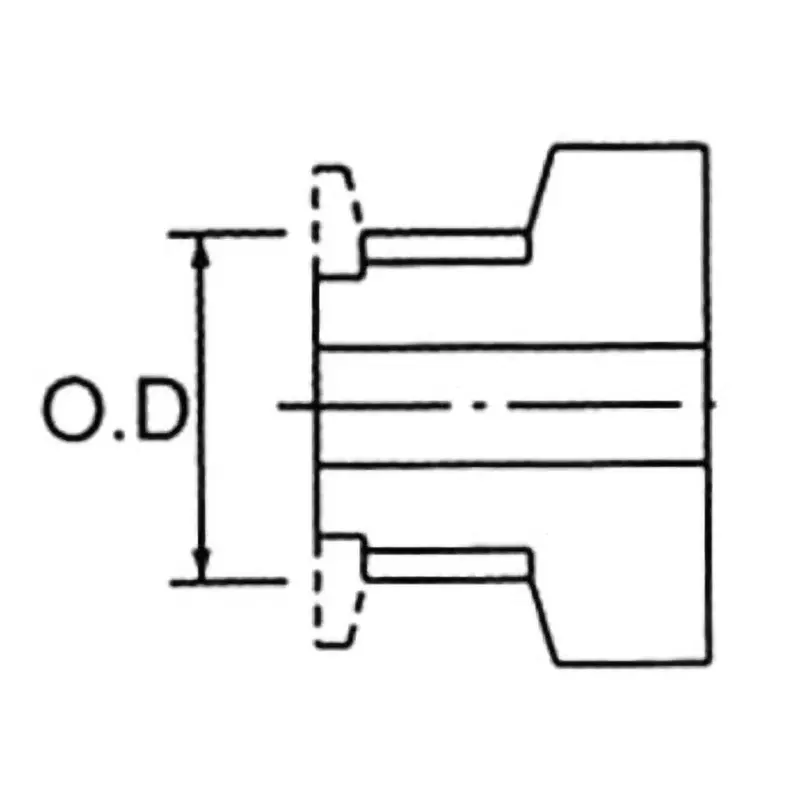

Outer Diameter |
22.13 mm |
Tooth width W (mm) |
11 |
Dimension H |
2 mm |
Pulley |
C Type |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
