| Type of Product | Timing Pulley |
| Model No | P36-H-150B |
| Material | Steel |
| Country of Origin | Japan |
Type of Product |
Timing Pulley |
Model No |
P36-H-150B |
Material |
Steel |
Country of Origin |
Japan |
No. of Teeth |
36 |

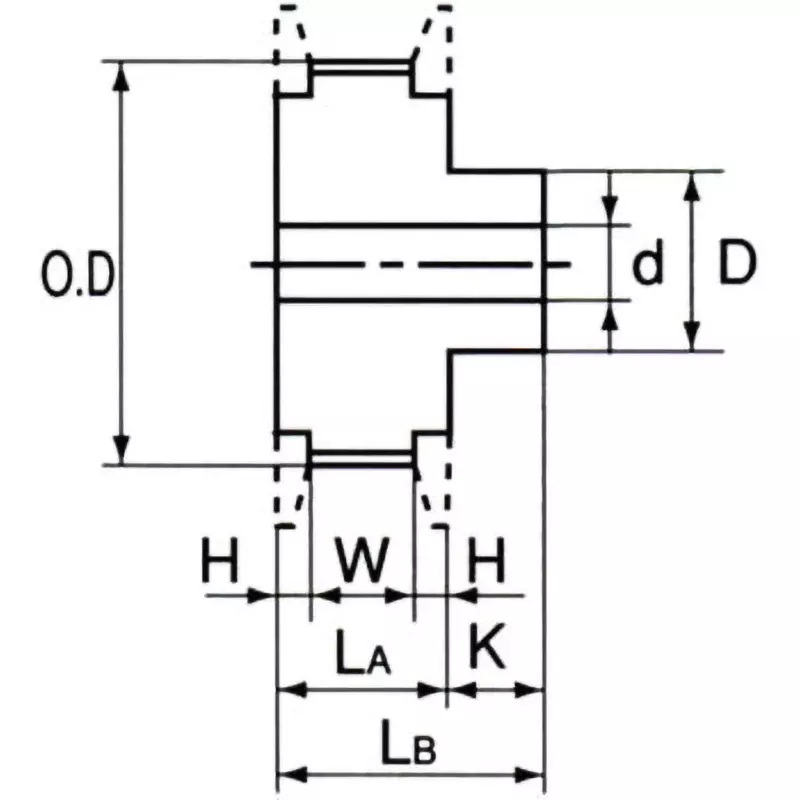

Dimension LB (mm) |
65 |
Type |
H150 B Type |
Dimension LA (mm) |
45 |
Monotaro ID |
35269263 |
Pitch Diameter (Φmm) |
145.53 |
Dimension K |
20 mm |
Shaft Hole Diameter d (mm) |
20-48 mm |
Dimension D (Φmm) |
82 mm |
Suitable Flange |
F-16152134 |
Suitable Belt Width (mm) |
38.1 |
Compatible Belt |
H |

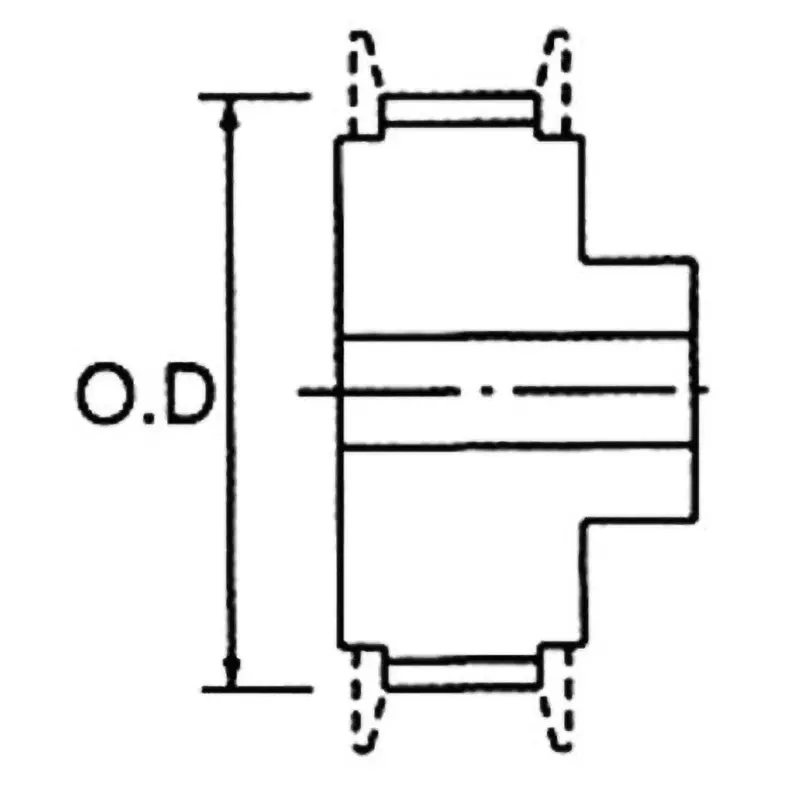

Outer Diameter |
144.16 mm |
Tooth width W (mm) |
40 |
Dimension H |
2.5 mm |
Pulley |
B Type |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
