| Type of Product | Timing Pulley |
| Model No | T10-25-15A |
| Material | Steel |
| Country of Origin | JAPAN |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Pulley |
Model No |
T10-25-15A |
Material |
Steel |
Country of Origin |
JAPAN |
No. of Teeth |
15 |

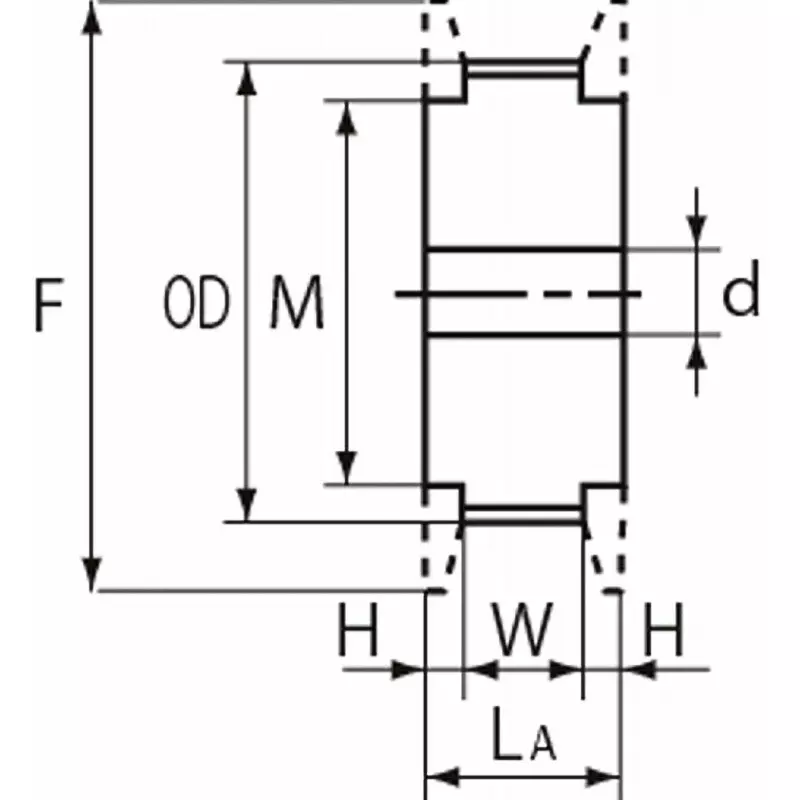

Dimension LA (mm) |
32 |
Monotaro ID |
47943655 |
Pitch Diameter (Φmm) |
47.75 |
Dimension K |
13 mm |
Shaft Hole Diameter d (mm) |
10-22 mm |
Suitable Flange |
F-165136 |
Dimension H |
2.5 mm |
Shape |
A Type |
Dimension W |
27 mm |
Dimension d |
33 mm |
Mass |
0.34 Kg |
Maximum shaft hole diameter d (Φmm) |
22 |
Min. Shaft Hole Diameter d |
10 mm |
Applicable flange outer diameter D (mm) |
51 |
Tooth Type |
T10 Type |
Included Components |
Flange |
Cell Spacing (mm) |
10 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
