Ships within 25 days
View
View
View
View
| Type of Product | Complete Timing Pulley |
| Model No | S2-20S5M0150AF-12T3K |
| Country of Origin | Japan |
| No. of Teeth | 20 |
Type of Product |
Complete Timing Pulley |
Model No |
S2-20S5M0150AF-12T3K |
Country of Origin |
Japan |
No. of Teeth |
20 |
Type |
Starquick S5M |

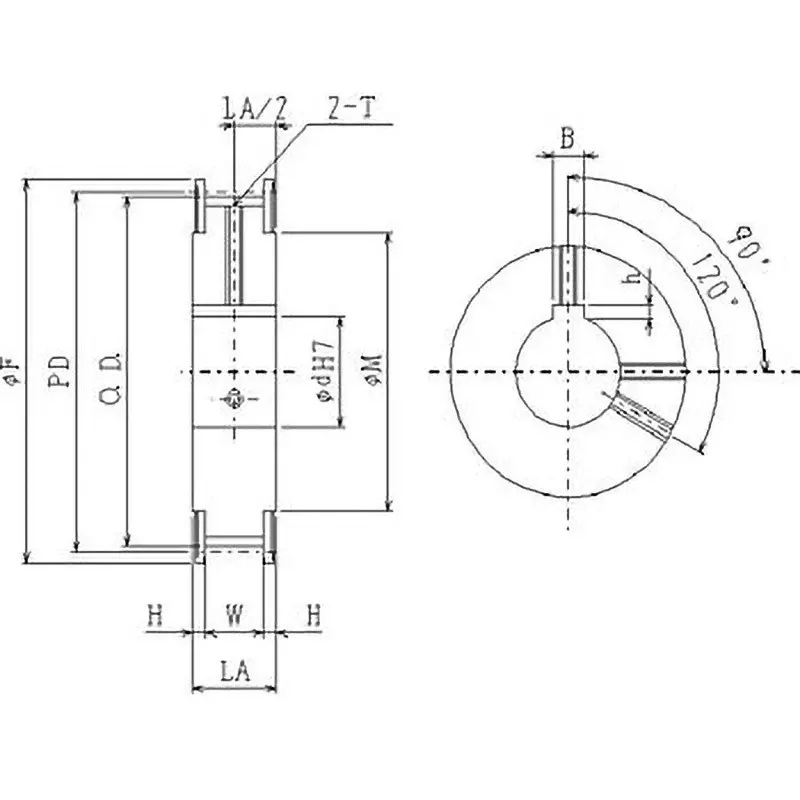

Dimension LA (mm) |
22 |
Monotaro ID |
58490406 |
Dimension H |
2.5 mm |
Surface Treatment |
Black dyed |
Finish Processing |
2 Taps (on Key / 120° Position) |
Dimensions PD (mm) |
31.83 |
Keyway height h (mm) |
1.8 |
Shaft Hole Diameter (mm) |
12 mm |
Material (Pulley) |
Steel |
Shape |
With Flange |
Dimension OD (mm) |
30.87 |
Dimension M |
22 mm |
Dimension W |
17 mm |
Keyway width B (mm) |
4 |
Dimension F |
35 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
