| Type of Product | Timing Belt Pulley |
| Model No | 16L075A |
| Material | Steel |
| Country of Origin | JAPAN |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Belt Pulley |
Model No |
16L075A |
Material |
Steel |
Country of Origin |
JAPAN |
No. of Teeth |
16 |

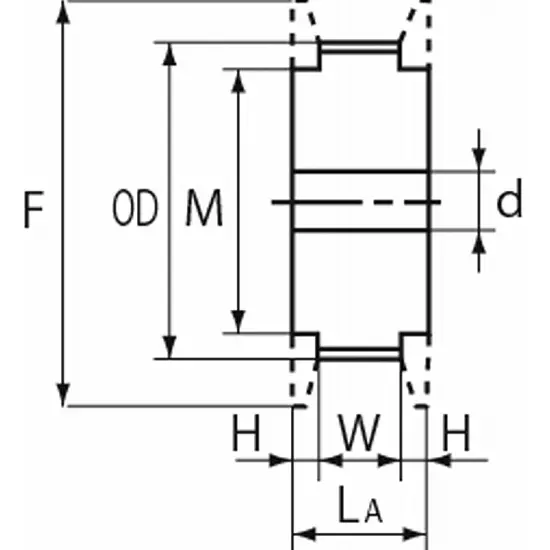

Dimension LA (mm) |
26 |
Monotaro ID |
47874057 |
Pitch Diameter (Φmm) |
48.51 |
Suitable Flange |
F-165539 |
Dimension H |
2.5 mm |
Shape |
A Type |
Dimension W |
21 mm |
Mass |
0.31 Kg |
Nominal Width |
75 (19.0 mm) |
Maximum shaft hole diameter d (Φmm) |
22 |
Min. Shaft Hole Diameter d |
12 mm |
Applicable flange outer diameter D (mm) |
55 |
Applicable flange thickness t (mm) |
1.6 |
Tooth Type |
L Type |
Included Components |
Flange |
Cell Spacing (mm) |
9.525 mm |
Applicable flange inner diameter P (mm) |
39 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
